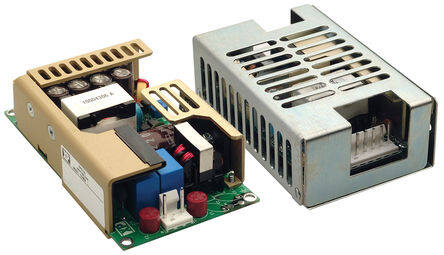

ECM100UQ46
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
XP POWER ECM100UQ46 AC/DC Open Frame Power Supply, Fixed, 4 Output, 90 V, 264 V, 80 W, 5 V
PDF
/
Buying Options
Total Price: USD $162.18
Unit Price: USD $162.18
≥1 USD $162.18
≥10 USD $153
≥100 USD $144.33962
≥1000 USD $128.46175
Inventory: 9163
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 63.5mm
Height 30.5mm
Technical
Current - Output 3 800mA
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 90V
Current - Output 2 3A
Minimum Load Required Yes
Voltage - Output 4 -5V
Max Output Power 80W
Voltage - Output 3 -15V
Current - Output 1 10A
Max Input Voltage 264V
Min Input Voltage 90V
Voltage - Output 2 15V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Current 10A
Voltage - Input 90V~264VAC 120V~370VDC
Current - Output (Max) 10A 3A 800mA 500mA
Output Voltage 5V
Voltage - Isolation 4kV
Efficiency 85%
Approval Agency cUL
Number of Outputs 4
Power Rating 100W
Subcategory Power Supply Modules
Power (Watts) 80W 100W Forced Air
Applications ITE (Commercial), Medical
Type Open Frame
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Universal Input
Size / Dimension 4.50Lx2.50W x 1.20 H 114.3mmx63.5mmx30.5mm
Series ECM (100W)
Published 2012
Operating Temperature 0°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 24 Weeks
