ECM100UQ45
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

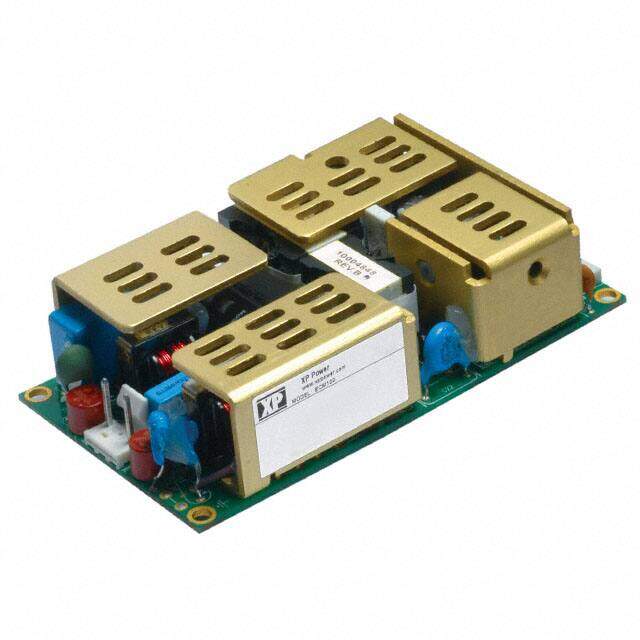

XP POWER ECM100UQ45 AC/DC Open Frame Power Supply, Adjustable, Fixed, 4 Output, 90 V, 264 V, 80 W, 5 V
PDF
/
Buying Options
Total Price: USD $167.42
Unit Price: USD $167.4164
≥1 USD $167.4164
≥10 USD $157.94
≥100 USD $149
≥1000 USD $132.60947
Inventory: 7271
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mount Chassis, Chassis Mount
Mounting Type Chassis Mount
Weight 149.685482g
Technical
Operating Temperature 0°C~70°C With Derating
Published 2004
Series ECM (100W)
Size / Dimension 4.50Lx2.50W x 1.20 H 114.3mmx63.5mmx30.5mm
Feature Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial), Medical
Power (Watts) 80W 100W Forced Air
Subcategory Power Supply Modules
Power Rating 100W
Max Power Dissipation 100W
Frequency 63Hz
Number of Outputs 4
Approval Agency CB, CE
Efficiency 80%
Voltage - Isolation 4kV
Output Voltage 5V
Max Output Current 3A
Current - Output (Max) 10A 3A 800mA 500mA
Voltage - Input 90V~264VAC 120V~370VDC
Output Power 100W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Voltage - Output 2 12V
Min Input Voltage 90V
Max Input Voltage 264V
Current - Output 1 10A
Voltage - Output 3 -12V
Max Output Power 80W
Voltage - Output 4 -5V
Minimum Load Required Yes
Input Current 900μA
Current - Output 2 3A
Min Input Voltage (AC) 90V
Max Input Voltage (AC) 264V
Current - Output 3 800mA
Dimensions
Height 26.924mm
Width 63.5mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
