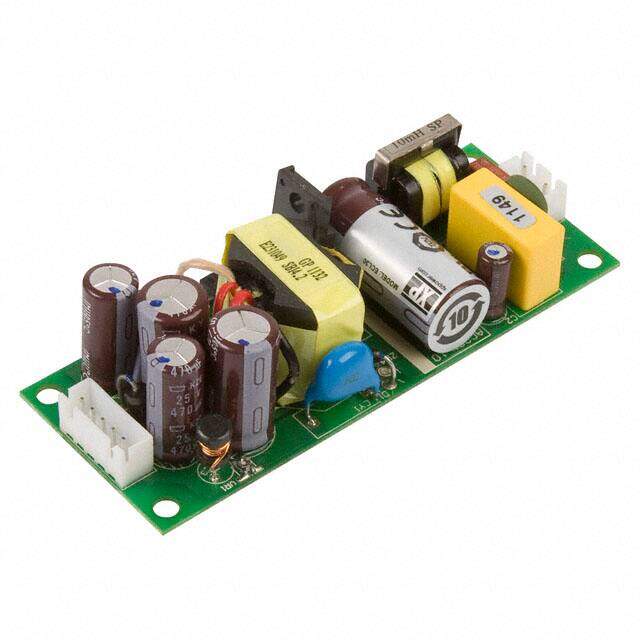

ECL30UT02-T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
XP POWER ECL30UT02-T AC/DC Open Frame Power Supply, Adjustable, Fixed, 3 Output, 85 V, 264 V, 30 W, 5 V
PDF
/
Buying Options
Total Price: USD $65.17
Unit Price: USD $65.1688
≥1 USD $65.1688
≥10 USD $61.48
≥100 USD $58
Inventory: 2830
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Length 87.9mm
Height 25.4mm
Technical
Current - Output 3 630mA
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Current - Output 2 630mA
Minimum Load Required Yes
Max Output Power 30W
Voltage - Output 3 -12V
Current - Output 1 3A
Max Input Voltage 264V
Min Input Voltage 85V
Voltage - Output 2 12V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 30W
Output Current 3A
Voltage - Input 85V~264VAC
Current - Output (Max) 3A 630mA 630mA
Max Output Current 3A
Output Voltage 5V
Voltage - Isolation 3kV
Efficiency 83%
Approval Agency CSA, EN, IEC, UL
Number of Outputs 3
Max Power Dissipation 30W
Power Rating 30W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 3.46Lx1.36W x 0.88 H 87.9mmx34.6mmx22.4mm
Series ECL (30W)
Published 2011
Operating Temperature -20°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis, Chassis Mount
Supply Chain
Factory Lead Time 17 Weeks
