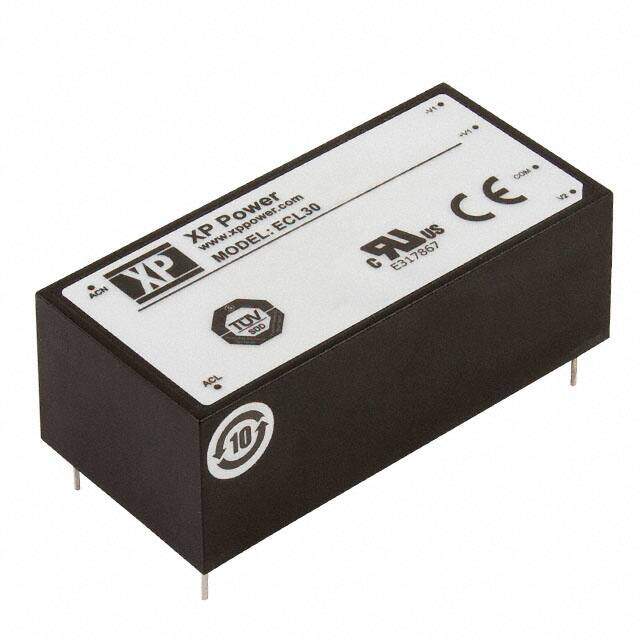

ECL30UT02-E
RoHS
RoHS compliant
RoHS compliantPackage 7-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description
XP POWER ECL30UT02-E AC/DC PCB Mount Power Supply, Adjustable, Fixed, 3 Output, 85 V, 264 V, 30 W, 5 V
PDF
/
Buying Options
Total Price: USD $73.03
Unit Price: USD $73.034
≥1 USD $73.034
≥10 USD $68.9
≥100 USD $65
Inventory: 4709
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 7-DIP Module
Weight 0.342lb 155.13g
Technical
Operating Temperature -20°C~70°C With Derating
Published 2011
Series ECL (30W)
Size / Dimension 3.10Lx1.50W x 1.10 H 78.7mmx38.1mmx27.9mm
Feature OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed
Applications ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 30W
Max Power Dissipation 30W
Depth 78.7mm
Number of Outputs 3
Approval Agency CSA, cUL, EN, IEC, UL
Efficiency 83%
Output Voltage 5V
Max Output Current 3A
Current - Output (Max) 3A 630mA 630mA
Voltage - Input 85V~264VAC
Output Current 3A
Output Power 30W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Current - Output 3 630mA
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Load Regulation ±1%
Line Regulation ±0.5%
Current - Output 2 630mA
Max Output Power 30W
Voltage - Output 3 -12V
Current - Output 1 3A
Max Input Voltage 264V
Min Input Voltage 85V
Voltage - Output 2 12V
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 28mm
