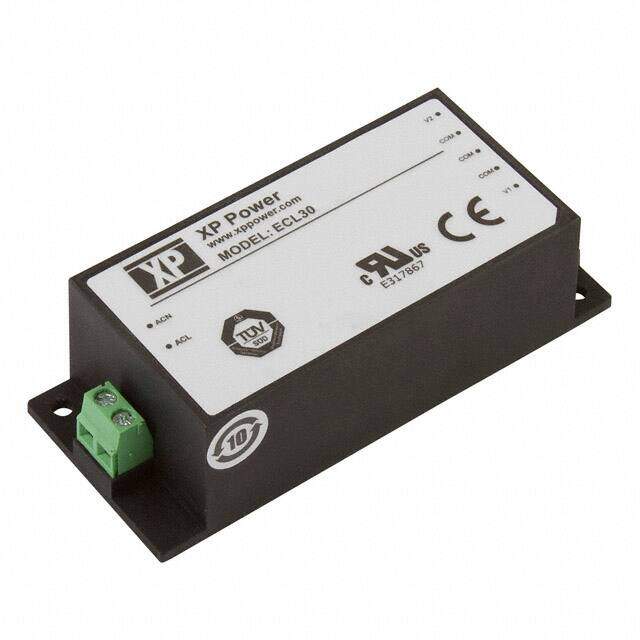

ECL30UD03-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC PSU, DUAL O/P, 30W, SCREW TERM
PDF
/
Buying Options
Total Price: USD $92.32
Unit Price: USD $92.32335
≥1 USD $92.32335
≥10 USD $87.0975
≥100 USD $82.167451
≥1000 USD $73.128737
Inventory: /
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 28.5mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Current - Output 2 1.3A
Minimum Load Required Yes
Max Output Power 30W
Current - Output 1 3A
Max Input Voltage 264V
Min Input Voltage 85V
Voltage - Output 2 12V
Output Power 30.6W
Output Current 3A
Voltage - Input 85V~264VAC
Current - Output (Max) 3A 1.3A
Max Output Current 1.3A
Output Voltage 5V
Voltage - Isolation 3kV
Efficiency 81%
Number of Outputs 2
Max Power Dissipation 30W
Power Rating 30W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 3.78Lx1.57W x 1.12 H 96.0mmx40.0mmx28.5mm
Series ECL (30W)
Published 2008
Operating Temperature -20°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount, Panel
Supply Chain
Factory Lead Time 17 Weeks
