ECL30UD01-P
RoHS
RoHS compliant
RoHS compliantPackage 5-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description

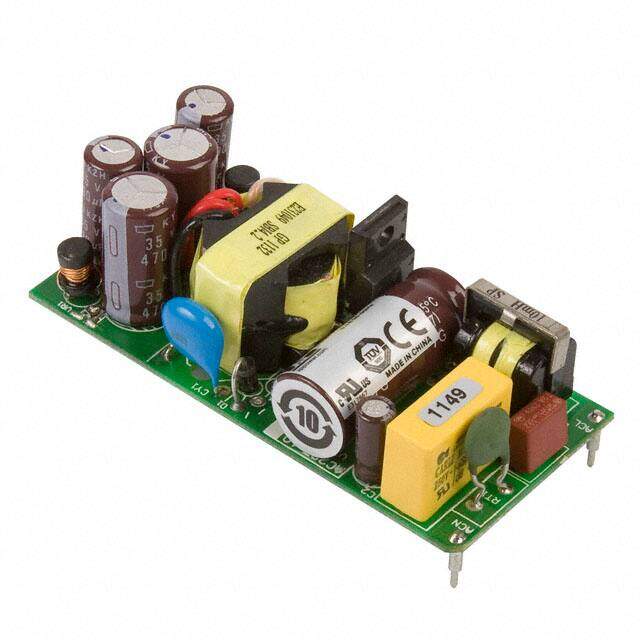

XP POWER ECL30UD01-PAC/DC PCB Mount Power Supply, Ultra Compact, Adjustable, Fixed, 12V, 1.3A, -12V, 1.3A
PDF
/
Buying Options
Total Price: USD $62.42
Unit Price: USD $62.41598
≥1 USD $62.41598
≥10 USD $58.883
≥100 USD $55.55
≥500 USD $52.40566
≥1000 USD $49.4393
Inventory: 4484
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 5-DIP Module
Weight 0.132lb 59.87g
Technical
Operating Temperature -20°C~70°C With Derating
Published 2000
Series ECL (30W)
Size / Dimension 2.96Lx1.36W x 1.05 H 75.2mmx34.6mmx26.7mm
Feature OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 30W
Max Power Dissipation 30W
Depth 75.2mm
Number of Outputs 2
Approval Agency CSA, cUL, EN, IEC, UL
Efficiency 84%
Output Voltage 12V
Max Output Current 1.3A
Current - Output (Max) 1.3A 1.3A
Voltage - Input 85V~264VAC
Output Current 1.3A
Output Power 30W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Voltage - Output 2 -12V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 1.3A
Max Output Power 30W
Current - Output 2 1.3A
Line Regulation ±0.5%
Load Regulation ±1%
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V
Dimensions
Height 22.3mm
Width 34.6mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
