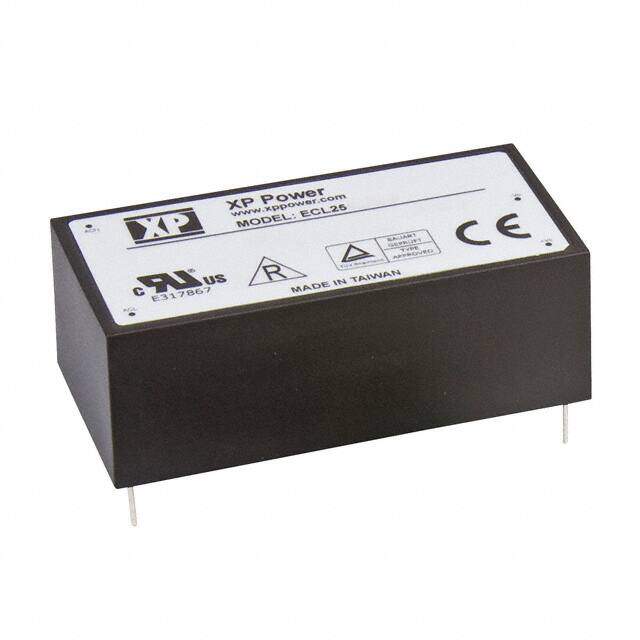

ECL25US09-E image
Favorite
ECL25US09-E image
Favorite

ECL25US09-E

XP Power
RoHS
RoHS RoHS compliant
Package 4-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description XP POWER ECL25US09-EAC/DC PCB Mount Power Supply, Ultra Compact, Adjustable, Fixed, 85 V, 264 V, 25 W, 9 V, 2.8 A
PDF
/
Buying Options
Total Price: USD $55
Unit Price: USD $55
≥1 USD $55
≥10 USD $51.88679
≥100 USD $48.9498
≥500 USD $46.17906
Inventory: 5058
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 17 Weeks

Physical

Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 4-DIP Module
Weight 0.331lb 150.14g

Technical

Operating Temperature -20°C~70°C With Derating
Published 2009
Series ECL (25W)
Size / Dimension 3.10Lx1.50W x 1.10 H 78.7mmx38.1mmx27.9mm
Feature OCP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed
Applications ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 25W
Max Power Dissipation 25W
Depth 78.7mm
Frequency 63Hz
Number of Outputs 1
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Load Regulation ±1%
Line Regulation ±0.5%
Isolation Voltage 3kV
Input Current 400μA
Nominal Output Voltage 9V
Max Output Power 25W
Current - Output 1 2.8A
Max Input Voltage 264V
Min Input Voltage 85V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 25W
Output Current 2.8A
Voltage - Input 85V~264VAC
Max Output Current 2.8A
Output Voltage 9V
Efficiency 80%
Approval Agency CSA, cUL, EN, IEC, UL

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Height 27.9mm
