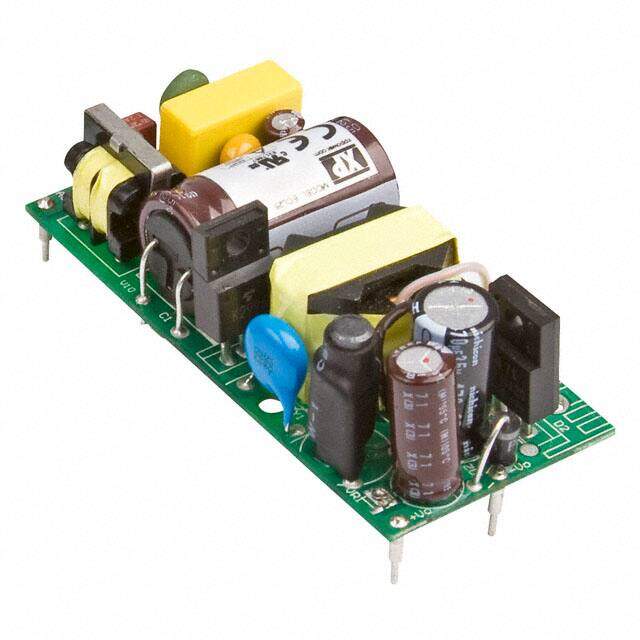

ECL25US05-P
RoHS
RoHS compliant
RoHS compliantPackage 4-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description
XP POWER ECL25US05-PAC/DC PCB Mount Power Supply, Ultra Compact, Adjustable, Fixed, 85 V, 264 V, 25 W, 5 V, 5 A
PDF
/
Buying Options
Total Price: USD $38.2
Unit Price: USD $38.2024
≥1 USD $38.2024
≥10 USD $36.04
≥100 USD $34
≥500 USD $32.07547
Inventory: 4371
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 34.6mm
Height 26.7mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Load Regulation 1%
Line Regulation ±0.5%
Isolation Voltage 3kV
Input Current 400μA
Nominal Output Voltage 5V
Max Output Power 25W
Current - Output 1 5A
Max Input Voltage 264V
Min Input Voltage 85V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 25W
Output Current 5A
Voltage - Input 85V~264VAC
Max Output Current 5A
Output Voltage 5V
Efficiency 78%
Approval Agency CSA, EN, IEC, UL
Number of Outputs 1
Depth 75.2mm
Max Power Dissipation 25W
Power Rating 25W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature OCP, OVP, SCP
Size / Dimension 2.96Lx1.36W x 1.05 H 75.2mmx34.6mmx26.7mm
Series ECL (25W)
Published 2011
Operating Temperature -20°C~70°C With Derating
Physical
Weight 0.14lb 63.5g
Package / Case 4-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 17 Weeks
