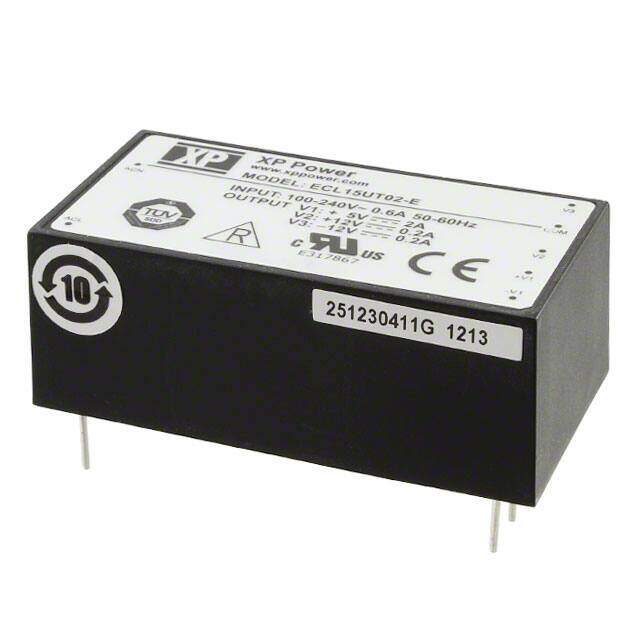

ECL15UT02-E image
Favorite
ECL15UT02-E image
Favorite

ECL15UT02-E

XP Power
RoHS
RoHS RoHS compliant
Package 7-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description XP POWER ECL15UT02-EAC/DC PCB Mount Power Supply, Ultra Compact, Adjustable, Fixed, 5V, 2A, 12VDC, 200mA, -12V, 200mA
PDF
/
Buying Options
Total Price: USD $56.5
Unit Price: USD $56.5
≥1 USD $56.5
≥10 USD $53.30189
≥100 USD $50.2848
≥500 USD $47.43849
≥1000 USD $44.75329
≥3000 USD $42.22009
Inventory: 6713
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 17 Weeks

Physical

Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 7-DIP Module
Weight 0.209lb 94.8g

Technical

Operating Temperature -20°C~70°C With Derating
Published 2011
Series ECL (15W)
Size / Dimension 2.56Lx1.31W x 0.96 H 65.0mmx33.3mmx24.4mm
Feature OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed
Applications ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 15W
Max Power Dissipation 15W
Depth 65mm
Number of Outputs 3
Approval Agency CSA, cUL, EN, IEC, UL
Efficiency 81%
Output Voltage 5V
Max Output Current 2A
Current - Output (Max) 2A 200mA 200mA
Voltage - Input 85V~264VAC
Output Current 2A
Output Power 15W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Voltage - Output 2 12V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 2A
Voltage - Output 3 -12V
Max Output Power 15W
Current - Output 2 200mA
Line Regulation ±0.5%
Load Regulation ±1%
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V
Current - Output 3 200mA

Dimensions

Height 24.4mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
