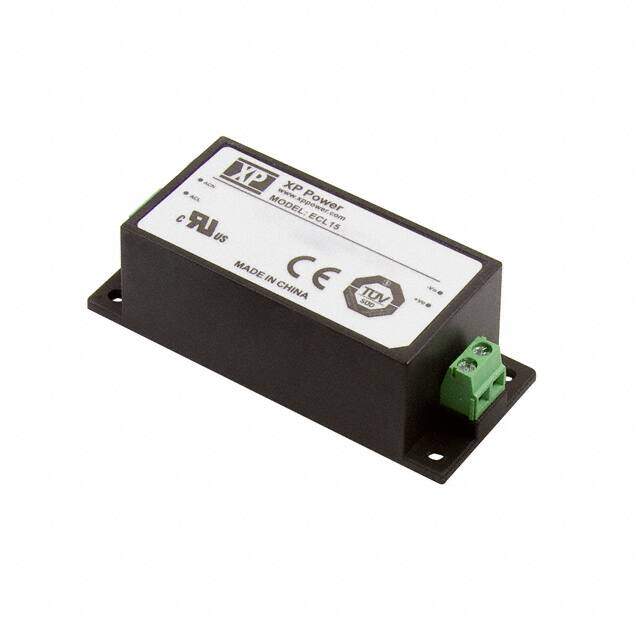

ECL15US09-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 9V 15W
PDF
/
Buying Options
Total Price: USD $48.65
Unit Price: USD $48.65188
≥1 USD $48.65188
≥10 USD $45.898
≥100 USD $43.3
≥500 USD $40.84906
Inventory: 529
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 26.4mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Nominal Output Voltage 9V
Minimum Load Required No
Max Output Power 15W
Current - Output 1 1.67A
Max Input Voltage 264V
Min Input Voltage 85V
Output Power 15W
Output Current 1.67A
Voltage - Input 85V~264VAC
Max Output Current 1.67A
Output Voltage 9V
Voltage - Isolation 3kV
Efficiency 80%
Number of Outputs 1
Max Power Dissipation 15W
Power Rating 15W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 3.30Lx1.36W x 1.04 H 84.0mmx34.5mmx26.4mm
Series ECL (15W)
Published 2011
Operating Temperature -20°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount, Panel
Supply Chain
Factory Lead Time 17 Weeks
