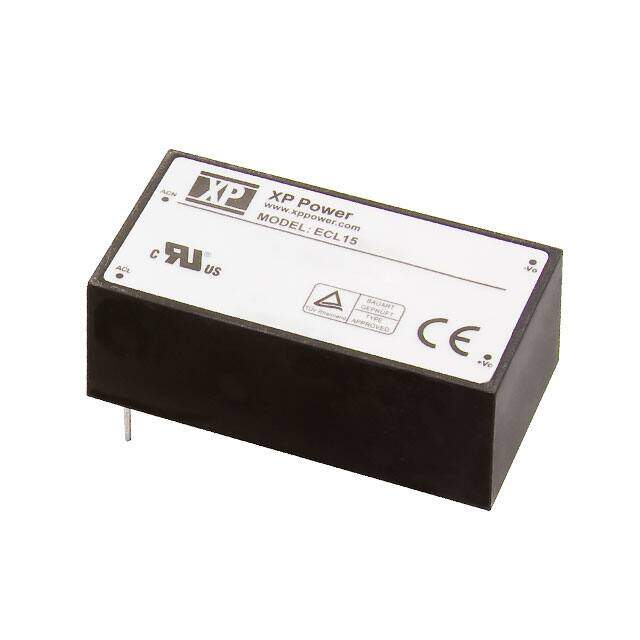

ECL15US05-E image
Favorite
ECL15US05-E image
Favorite

ECL15US05-E

XP Power
RoHS
RoHS RoHS compliant
Package 4-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description XP POWER ECL15US05-EAC/DC PCB Mount Power Supply, Ultra Compact, Adjustable, Fixed, 85 V, 264 V, 15 W, 5 V, 3 A
PDF
/
Buying Options
Total Price: USD $47.7
Unit Price: USD $47.7
≥1 USD $47.7
≥50 USD $45
≥100 USD $42.45283
Inventory: 2578
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 17 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case 4-DIP Module
Weight 0.199lb 90.26g

Technical

Operating Temperature -20°C~70°C With Derating
Published 2011
Series ECL (15W)
Size / Dimension 2.56Lx1.31W x 0.96 H 65.0mmx33.3mmx24.4mm
Feature OCP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed
Applications ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 15W
Max Power Dissipation 15W
Depth 65mm
Number of Outputs 1
Approval Agency CSA, cUL, EN, IEC, UL
Efficiency 78%
Output Voltage 5V
Max Output Current 3A
Voltage - Input 85V~264VAC
Output Current 3A
Output Power 15W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 3A
Max Output Power 15W
Nominal Output Voltage 5V
Input Current 300mA
Line Regulation ±0.5%
Load Regulation ±1%
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V

Dimensions

Height 24.4mm
Width 33.3mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
