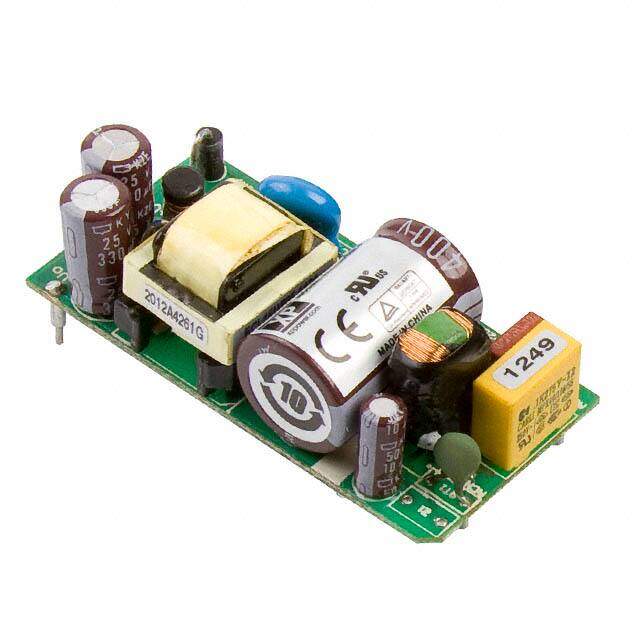

ECL15US03-P
RoHS
RoHS compliant
RoHS compliantPackage 4-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description
AC/DC CONVERTER 3.3V 10W
PDF
/
Buying Options
Total Price: USD $33.92
Unit Price: USD $33.92
≥1 USD $33.92
≥10 USD $32
≥100 USD $30.18868
≥500 USD $28.47989
≥1000 USD $26.86782
≥3000 USD $25.347
Inventory: 7019
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 4-DIP Module
Weight 0.077lb 34.93g
Technical
Operating Temperature -20°C~70°C With Derating
Published 2011
Series ECL (15W)
Size / Dimension 2.44Lx1.21W x 0.96 H 62.0mmx30.7mmx24.4mm
Feature OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 10W
Max Power Dissipation 10W
Load Regulation ±1%
Line Regulation ±0.5%
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 10W
Output Current 3A
Voltage - Input 85V~264VAC
Voltage - Output 1 3.3V
Max Output Current 3A
Output Voltage 3.3V
Efficiency 75%
Approval Agency CSA, cUL, EN, IEC, UL
Number of Outputs 1
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 30.7mm
Length 62mm
Height 24.4mm
