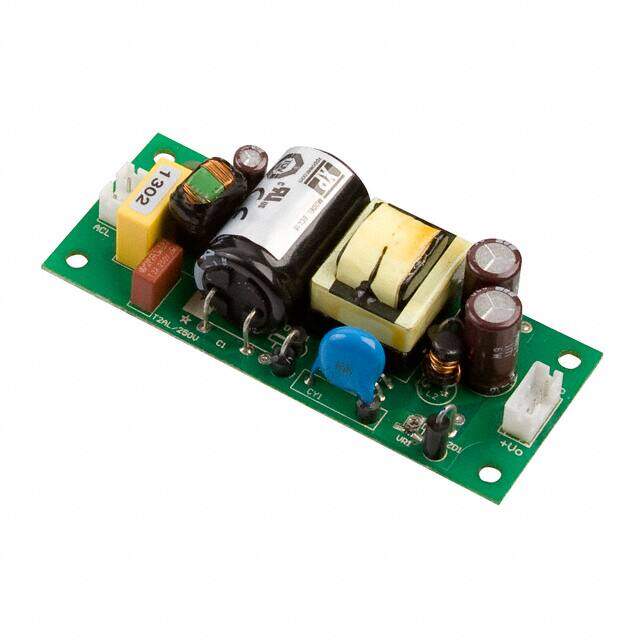

ECL15UD02-T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
XP POWER ECL15UD02-TAC/DC Open Frame Power Supply, Ultra Compact, Adjustable, Fixed, 15W, 15V, 500mA, -15V, 500mA
PDF
/
Buying Options
Total Price: USD $39.33
Unit Price: USD $39.326
≥1 USD $39.326
≥10 USD $37.1
≥100 USD $35
≥500 USD $33.01887
≥1000 USD $31.14988
Inventory: 2539
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 31.8mm
Length 78.7mm
Height 19.812mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Current - Output 2 500mA
Minimum Load Required Yes
Max Output Power 15W
Current - Output 1 500mA
Max Input Voltage 264V
Min Input Voltage 85V
Voltage - Output 2 -15V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 15W
Output Current 500mA
Voltage - Input 85V~264VAC
Current - Output (Max) 500mA 500mA
Max Output Current 500mA
Output Voltage 15V
Voltage - Isolation 3kV
Efficiency 82%
Approval Agency CSA, EN, IEC, UL
Number of Outputs 2
Max Power Dissipation 15W
Power Rating 15W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 3.10Lx1.25W x 0.78 H 78.7mmx31.7mmx20.0mm
Series ECL (15W)
Published 2005
Operating Temperature -20°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis, Chassis Mount
Supply Chain
Factory Lead Time 17 Weeks
