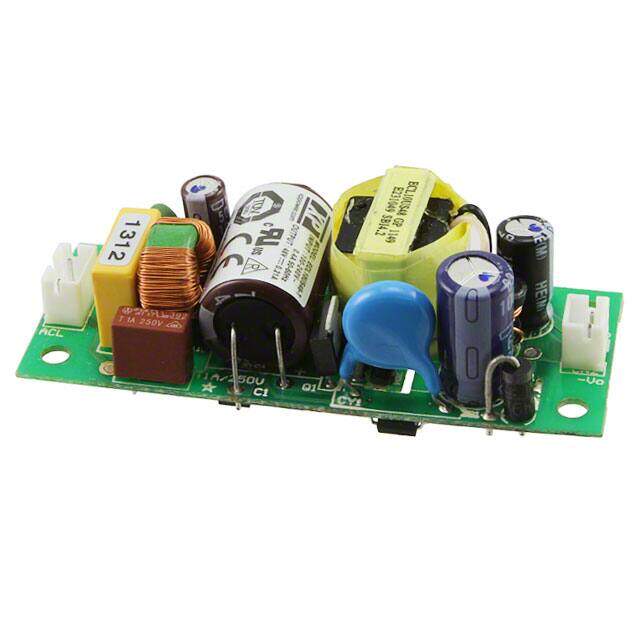

ECL10US48-T

XP Power
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description XP POWER ECL10US48-TAC/DC Open Frame Power Supply, Ultra Compact, Adjustable, Fixed, 85 V, 264 V, 10 W, 48 V, 210 mA
PDF
/
Buying Options
Total Price: USD $26.4
Unit Price: USD $26.4046
≥1 USD $26.4046
≥10 USD $24.91
≥100 USD $23.5
≥500 USD $22.16981
≥1000 USD $20.91492
≥3000 USD $19.73105
Inventory: 9729
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 17 Weeks

Physical

Mount Chassis, Chassis Mount
Mounting Type Chassis Mount

Technical

Operating Temperature -20°C~70°C With Derating
Published 2002
Series ECL (10W)
Size / Dimension 3.46Lx1.36W x 0.88 H 87.9mmx34.6mmx22.4mm
Feature Adjustable Output, DC Input Capable, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 10W
Max Power Dissipation 10W
Number of Outputs 1
Approval Agency CSA, EN, IEC, UL
Efficiency 82%
Voltage - Isolation 3kV
Output Voltage 48V
Max Output Current 210mA
Voltage - Input 85V~264VAC
Output Current 210mA
Output Power 10W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 210mA
Max Output Power 10W
Minimum Load Required No
Nominal Output Voltage 48V
Input Current 200mA
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V

Dimensions

Height 22.352mm
Length 65mm
Width 25.4mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
