ECL10US15-T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

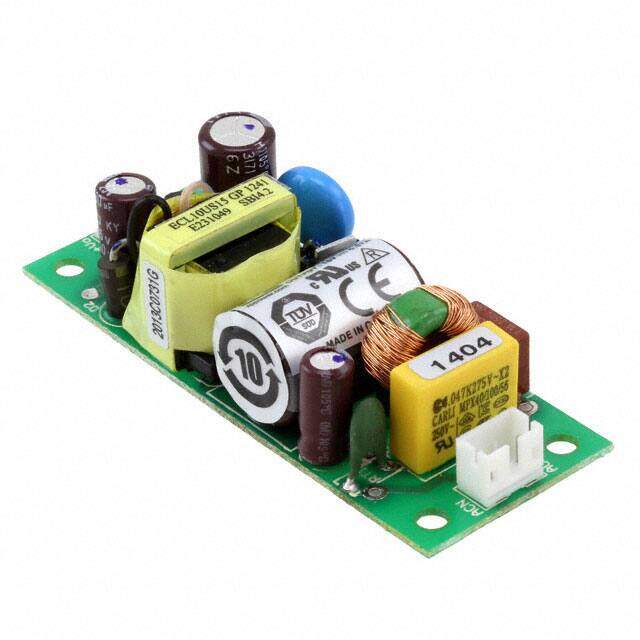

XP POWER ECL10US15-TAC/DC Open Frame Power Supply, Ultra Compact, Adjustable, Fixed, 85 V, 264 V, 10 W, 15 V, 670 mA
PDF
/
Buying Options
Total Price: USD $28
Unit Price: USD $28
≥1 USD $28
≥10 USD $26.41509
Inventory: 47
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 25.4mm
Length 65mm
Height 22.352mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Input Current 200mA
Nominal Output Voltage 15V
Minimum Load Required No
Max Output Power 10W
Current - Output 1 670mA
Max Input Voltage 264V
Min Input Voltage 85V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 10W
Output Current 670mA
Voltage - Input 85V~264VAC
Max Output Current 670mA
Output Voltage 15V
Voltage - Isolation 3kV
Efficiency 80%
Approval Agency CSA, EN, IEC, UL
Number of Outputs 1
Max Power Dissipation 10W
Power Rating 10W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 3.46Lx1.36W x 0.88 H 87.9mmx34.6mmx22.4mm
Series ECL (10W)
Published 2002
Operating Temperature -20°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis, Chassis Mount
Supply Chain
Factory Lead Time 17 Weeks
