ECL10US05-E
RoHS
RoHS compliant
RoHS compliantPackage 4-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description

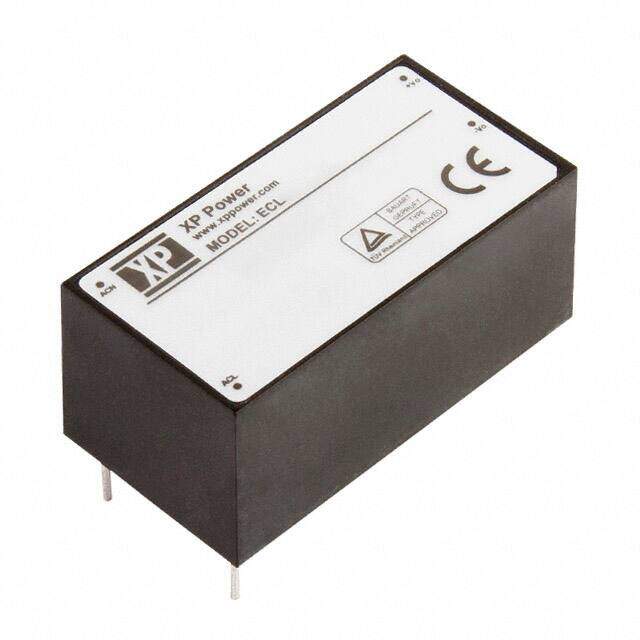

XP POWER ECL10US05-EAC/DC PCB Mount Power Supply, Ultra Compact, Adjustable, Fixed, 85 V, 264 V, 10 W, 5 V, 2 A
PDF
/
Buying Options
Total Price: USD $34.7
Unit Price: USD $34.69677
≥1 USD $34.69677
≥10 USD $32.7328
≥100 USD $30.88
≥500 USD $29.13208
≥1000 USD $27.48309
Inventory: 2592
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 4-DIP Module
Weight 0.132lb 59.87g
Technical
Operating Temperature -20°C~70°C With Derating
Published 2011
Series ECL (10W)
Size / Dimension 2.06Lx1.07W x 0.91 H 52.3mmx27.2mmx23.0mm
Feature OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Type Enclosed
Applications ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 10W
Max Power Dissipation 10W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 52.4mm
Frequency 63Hz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-P4
Number of Outputs 1
Approval Agency CSA, cUL, EN, IEC, UL
Efficiency 75%
Output Voltage 5V
Max Output Current 2A
Input Voltage-Nom 115V
Trim/Adjustable Output NO
Voltage - Input 85V~264VAC
Output Current 2A
Output Power 10W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 2A
Max Output Power 10W
Nominal Output Voltage 5V
Input Current 200mA
Line Regulation ±0.5%
Load Regulation ±1%
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V
Dimensions
Height 23mm
Width 27.2mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Alternative Model
