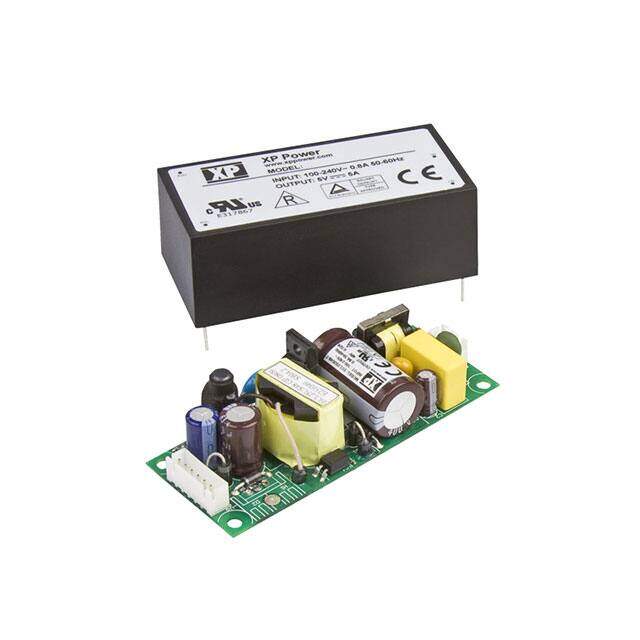

ECL10US03-T image
Favorite
ECL10US03-T image
Favorite

ECL10US03-T

XP Power
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description XP POWER ECL10US03-TAC/DC Open Frame Power Supply, Ultra Compact, Adjustable, Fixed, 85 V, 264 V, 8.6 W, 3.3 V, 2.6 A
PDF
/
Buying Options
Total Price: USD $27
Unit Price: USD $27
≥1 USD $27
≥10 USD $25.4717
≥100 USD $24.0299
≥1000 USD $21.38653
Inventory: 9964
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Width 25.4mm
Length 65mm
Height 22.352mm

Technical

Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Input Current 200mA
Nominal Output Voltage 3.3V
Minimum Load Required No
Max Output Power 8.6W
Current - Output 1 2.6A
Max Input Voltage 264V
Min Input Voltage 85V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 8.6W
Output Current 2.6A
Voltage - Input 85V~264VAC
Max Output Current 2.6A
Output Voltage 3.3V
Voltage - Isolation 3kV
Efficiency 72%
Approval Agency CSA, EN, IEC, UL
Number of Outputs 1
Max Power Dissipation 10W
Power Rating 8.6W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 3.46Lx1.36W x 0.88 H 87.9mmx34.6mmx22.4mm
Series ECL (10W)
Published 2002
Operating Temperature -20°C~70°C With Derating

Physical

Mounting Type Chassis Mount
Mount Chassis, Chassis Mount

Supply Chain

Factory Lead Time 17 Weeks
