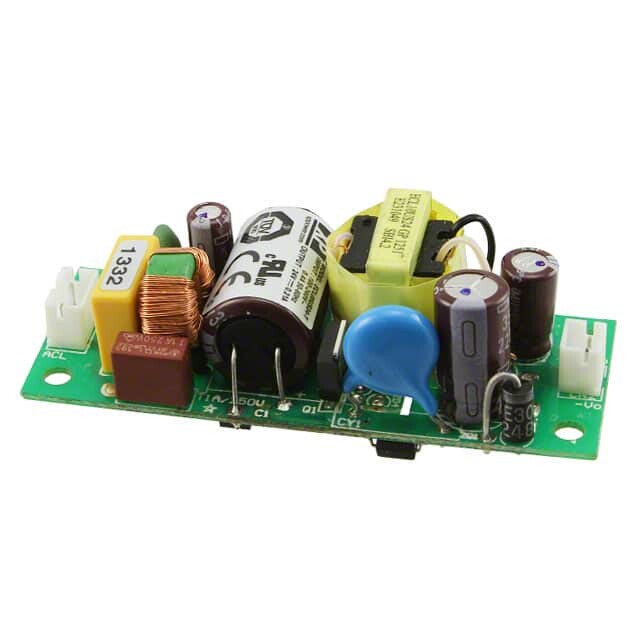

ECL05US24-T image
Favorite
ECL05US24-T image
Favorite

ECL05US24-T

XP Power
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description XP POWER ECL05US24-TAC/DC Open Frame Power Supply, Ultra Compact, Adjustable, Fixed, 85 V, 264 V, 5 W, 24 V, 210 mA
PDF
/
Buying Options
Total Price: USD $23.03
Unit Price: USD $23.0338
≥1 USD $23.0338
≥10 USD $21.73
≥100 USD $20.5
≥1000 USD $18.24493
Inventory: 2019
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 25.4mm
Length 65mm
Height 22.352mm

Technical

Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Nominal Output Voltage 24V
Minimum Load Required No
Max Output Power 5W
Current - Output 1 210mA
Max Input Voltage 264V
Min Input Voltage 85V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 5W
Output Current 210mA
Voltage - Input 85V~264VAC
Max Output Current 210mA
Output Voltage 24V
Voltage - Isolation 3kV
Efficiency 82%
Approval Agency CSA, EN, IEC, UL
Number of Outputs 1
Max Power Dissipation 5W
Power Rating 5W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 3.46Lx1.36W x 0.88 H 87.9mmx34.6mmx22.4mm
Series ECL (5W)
Published 2011
Operating Temperature -20°C~70°C With Derating

Physical

Mounting Type Chassis Mount
Mount Chassis, Chassis Mount

Supply Chain

Factory Lead Time 17 Weeks
