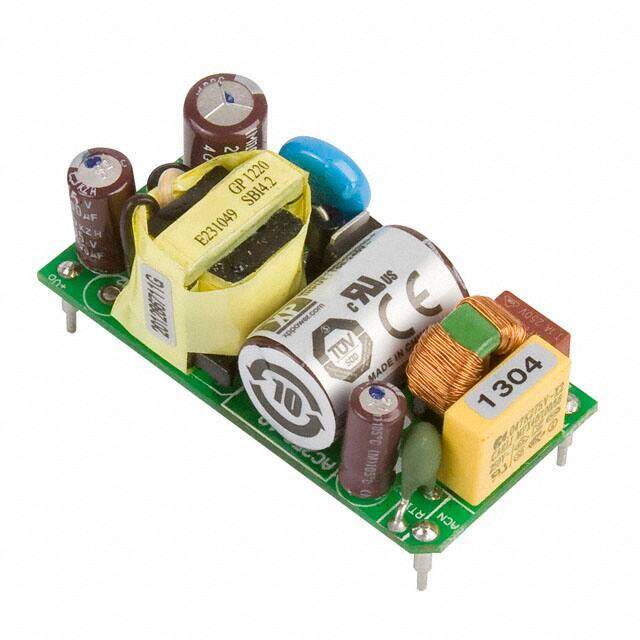

ECL05US15-P
RoHS
RoHS compliant
RoHS compliantPackage 4-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description
XP POWER ECL05US15-PAC/DC PCB Mount Power Supply, Ultra Compact, Adjustable, Fixed, 85 V, 264 V, 5 W, 15 V, 330 mA
PDF
/
Buying Options
Total Price: USD $26.4
Unit Price: USD $26.4046
≥1 USD $26.4046
≥10 USD $24.91
≥100 USD $23.5
≥500 USD $22.16981
Inventory: 9224
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 25.4mm
Height 18.46mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Load Regulation ±1%
Line Regulation ±0.5%
Nominal Output Voltage 15V
Max Output Power 5W
Current - Output 1 330mA
Max Input Voltage 264V
Min Input Voltage 85V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 5W
Output Current 330mA
Voltage - Input 85V~264VAC
Max Output Current 330mA
Output Voltage 15V
Efficiency 80%
Approval Agency CSA, cUL, EN, IEC, UL
Number of Outputs 1
Depth 50.8mm
Max Power Dissipation 5W
Power Rating 5W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature OVP, SCP
Size / Dimension 2.00Lx1.00W x 0.90 H 50.8mmx25.4mmx22.9mm
Series ECL (5W)
Published 2011
Operating Temperature -20°C~70°C With Derating
Physical
Weight 0.057lb 25.85g
Package / Case 4-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 17 Weeks
