ECL05US05-T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

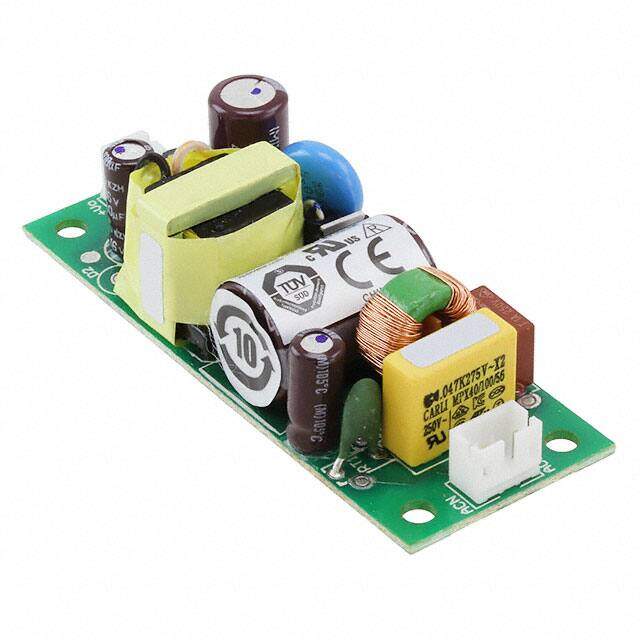

XP POWER ECL05US05-T AC/DC Open Frame Power Supply, Ultra Compact, Adjustable, Fixed, 85 V, 264 V, 5 W, 5 V, 1 A
PDF
/
Buying Options
Total Price: USD $22.91
Unit Price: USD $22.9102
≥1 USD $22.9102
≥10 USD $21.6134
≥100 USD $20.39
≥500 USD $19.23585
≥1000 USD $18.14703
≥3000 USD $17.11984
Inventory: 9860
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 25.4mm
Length 65mm
Height 22.352mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Nominal Output Voltage 5V
Minimum Load Required No
Max Output Power 5W
Current - Output 1 1A
Max Input Voltage 264V
Min Input Voltage 85V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 5W
Output Current 1A
Voltage - Input 85V~264VAC
Max Output Current 1A
Output Voltage 5V
Voltage - Isolation 3kV
Efficiency 75%
Approval Agency CSA, EN, IEC, UL
Number of Outputs 1
Max Power Dissipation 5W
Power Rating 5W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 3.46Lx1.36W x 0.88 H 87.9mmx34.6mmx22.4mm
Series ECL (5W)
Published 2011
Operating Temperature -20°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis, Chassis Mount
Supply Chain
Factory Lead Time 17 Weeks
