ECE60US24-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

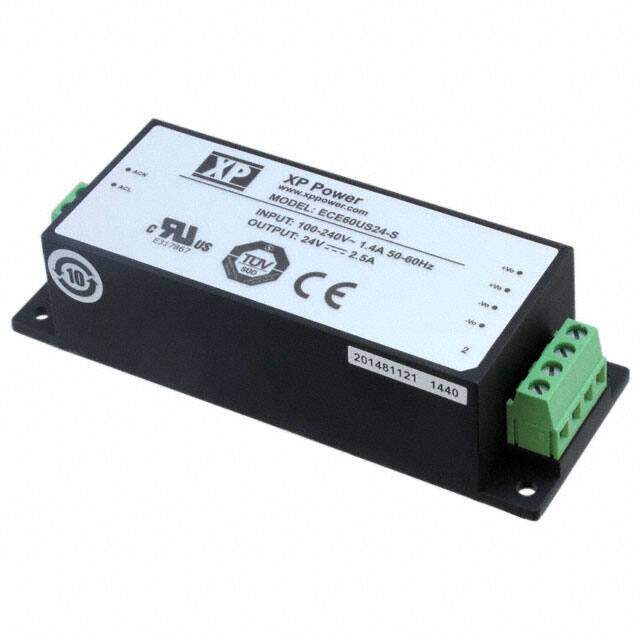

XP POWER ECE60US24-SAC/DC Enclosed Power Supply, Compact, Fixed, 85 V, 264 V, 60 W, 24 V, 2.5 A
PDF
/
Buying Options
Total Price: USD $101.12
Unit Price: USD $101.124
≥1 USD $101.124
≥10 USD $95.4
≥100 USD $90
≥500 USD $84.90566
≥1000 USD $80.09968
Inventory: 1443
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 40mm
Height 28.448mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Nominal Output Voltage 24V
Minimum Load Required No
Max Output Power 60W
Current - Output 1 2.5A
Max Input Voltage 264V
Min Input Voltage 85V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 60W
Voltage - Input 85V~264VAC
Max Output Current 2.5A
Output Voltage 24V
Voltage - Isolation 3kV
Efficiency 89%
Approval Agency CB, CSA, TUV, UL
Number of Outputs 1
Max Power Dissipation 60W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature DC Input Capable, Universal Input
Size / Dimension 4.09Lx1.57W x 1.12 H 104.0mmx40.0mmx28.5mm
Series ECE60 (60W)
Published 2014
Operating Temperature -40°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount, Panel
Supply Chain
Factory Lead Time 17 Weeks
