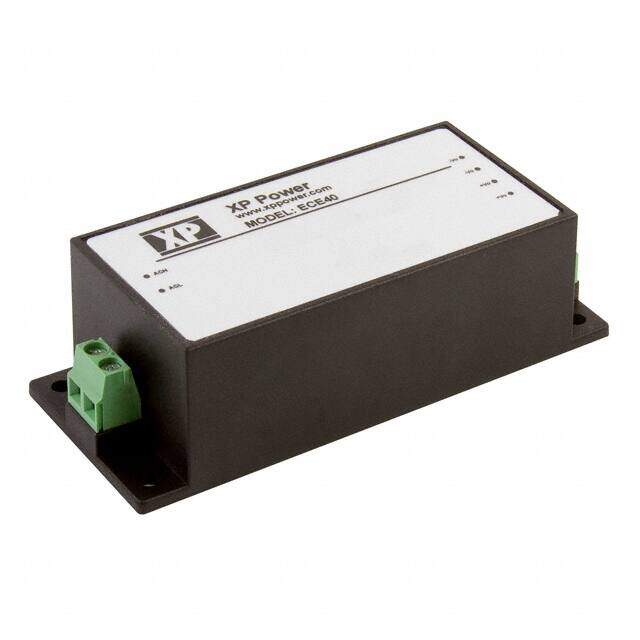

ECE40US03-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC PSU, ENCAPSULATED, 40W, 3.3V
PDF
/
Buying Options
Total Price: USD $85
Unit Price: USD $85
≥1 USD $85
≥10 USD $80.18868
≥100 USD $75.6497
≥500 USD $71.36764
≥1000 USD $67.32796
≥3000 USD $63.51694
Inventory: 8188
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 28.5mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Nominal Output Voltage 3.3V
Minimum Load Required No
Max Output Power 33W
Current - Output 1 10A
Max Input Voltage 264V
Min Input Voltage 85V
Output Power 33W
Output Current 9A
Voltage - Input 85V~264VAC
Max Output Current 10A
Output Voltage 3.3V
Voltage - Isolation 3kV
Efficiency 73%
Number of Outputs 1
Max Power Dissipation 40W
Power Rating 33W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature DC Input Capable, Universal Input
Size / Dimension 3.78Lx1.57W x 1.12 H 96.0mmx40.0mmx28.5mm
Series ECE (40W)
Published 2011
Operating Temperature -25°C~70°C
Physical
Mounting Type Chassis Mount
Mount Chassis Mount, Panel
Supply Chain
Factory Lead Time 17 Weeks
