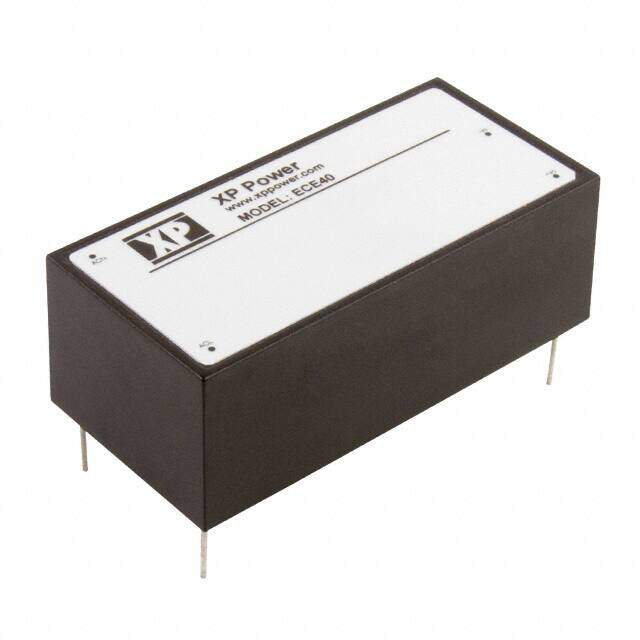

ECE40US03
RoHS
RoHS compliant
RoHS compliantPackage 4-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description
AC/DC PSU, ENCAPSULATED, 40W, 3.3V
PDF
/
Buying Options
Total Price: USD $74.35
Unit Price: USD $74.35
≥1 USD $74.35
≥10 USD $70.14151
≥100 USD $66.17124
≥500 USD $62.42569
≥1000 USD $58.89216
≥3000 USD $55.55865
Inventory: 96
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 4-DIP Module
Weight 0.331lb 150.14g
Technical
Operating Temperature -25°C~70°C With Derating
Published 2011
Series ECE (40W)
Size / Dimension 3.10Lx1.50W x 1.10 H 78.7mmx38.1mmx27.9mm
Feature OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Type Enclosed
Applications ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 33W
Max Power Dissipation 40W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Depth 78.7mm
JESD-30 Code R-XDMA-P4
Number of Outputs 1
Qualification Status Not Qualified
Approval Agency CSA, cUL, EN, UL
Efficiency 73%
Output Voltage 3.3V
Max Output Current 10A
Input Voltage-Nom 115V
Trim/Adjustable Output NO
Voltage - Input 85V~264VAC 120V~370VDC
Output Current 9A
Output Power 40W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 10A
Max Output Power 33W
Nominal Output Voltage 3.3V
Line Regulation ±0.5%
Load Regulation ±1%
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V
Dimensions
Height 27.9mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
