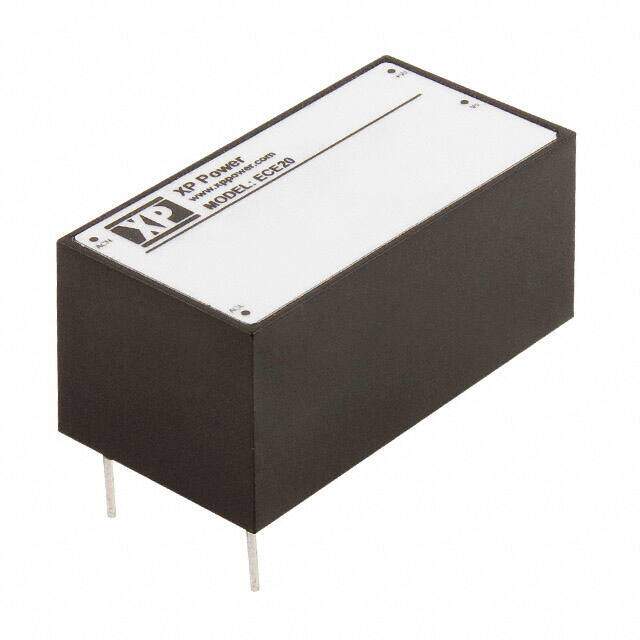

ECE20US05
RoHS
RoHS compliant
RoHS compliantPackage 4-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description
XP POWER ECE20US05 20 Watt AC/DC PCB Mount Single Output Power Supply, Input 85V to 264V, Output 5V/5.2A
PDF
/
Buying Options
Total Price: USD $48.31
Unit Price: USD $48.3148
≥1 USD $48.3148
≥10 USD $45.58
≥100 USD $43
≥500 USD $40.56604
≥1000 USD $38.26985
Inventory: 5820
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 25 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 4-DIP Module
Weight 0.132lb 59.87g
Technical
Operating Temperature -25°C~70°C With Derating
Published 2011
Series ECE (20W)
Size / Dimension 2.06Lx1.07W x 0.91 H 52.3mmx27.2mmx23.0mm
Feature OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Type Enclosed
Applications ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 20W
Max Power Dissipation 20W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Depth 52.4mm
JESD-30 Code R-XDMA-P4
Number of Outputs 1
Qualification Status Not Qualified
Approval Agency CSA, cUL, EN, UL
Efficiency 77%
Output Voltage 5V
Max Output Current 4A
Input Voltage-Nom 115V
Trim/Adjustable Output NO
Voltage - Input 85V~264VAC 120V~370VDC
Output Current 4A
Output Power 20W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 4A
Max Output Power 20W
Nominal Output Voltage 5V
Line Regulation ±0.5%
Load Regulation ±1%
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V
Dimensions
Height 23mm
Width 27.2mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
