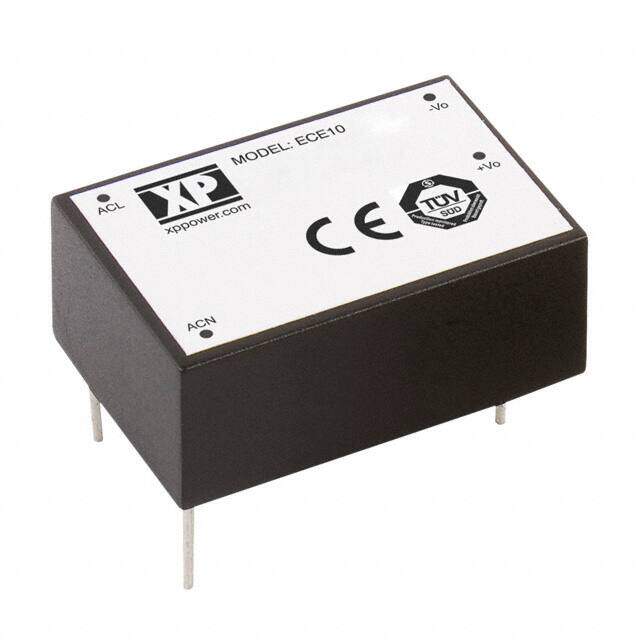

ECE10US15
RoHS
RoHS compliant
RoHS compliantPackage 4-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description
XP POWER ECE10US15 AC/DC PCB Mount Power Supply, Compact, Fixed, 1 Output, 85 V, 264 V, 10 W, 15 V
PDF
/
Buying Options
Total Price: USD $31.46
Unit Price: USD $31.4608
≥1 USD $31.4608
≥10 USD $29.68
≥100 USD $28
Inventory: 128
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 25.4mm
Height 15.24mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Load Regulation ±1%
Line Regulation ±0.5%
Max Output Power 10W
Current - Output 1 660mA
Max Input Voltage 264V
Min Input Voltage 85V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 10W
Output Current 660mA
Voltage - Input 85V~264VAC 120V~370VDC
Trim/Adjustable Output NO
Input Voltage-Nom 115V
Max Output Current 660mA
Output Voltage 15V
Efficiency 82%
Approval Agency CSA, cUL, EN, UL
Number of Outputs 1
JESD-30 Code R-XDMA-P4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 38.1mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 10W
Power Rating 10W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Enclosed
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature OVP, SCP
Size / Dimension 1.50Lx1.00W x 0.60 H 38.1mmx25.4mmx15.2mm
Series ECE (10W)
Published 2013
Operating Temperature -25°C~70°C With Derating
Physical
Weight 0.053lb 24.04g
Package / Case 4-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 17 Weeks
