ECE05US48
RoHS
RoHS compliant
RoHS compliantPackage 5-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description

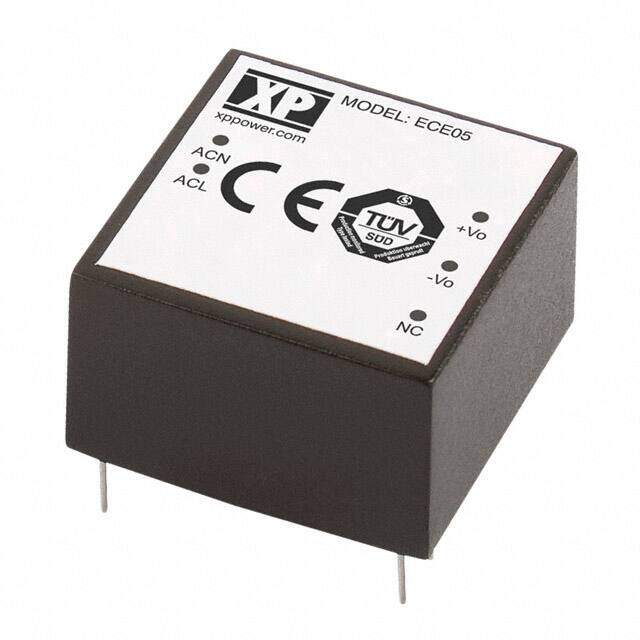

XP POWER ECE05US48 AC/DC PCB Mount Power Supply, Compact, Fixed, 1 Output, 85 V, 264 V, 5 W, 48 V
PDF
/
Buying Options
Total Price: USD $27.77
Unit Price: USD $27.77449
≥1 USD $27.77449
≥10 USD $26.20235
≥100 USD $24.7192
≥500 USD $23.32
≥1000 USD $22
≥3000 USD $20.75472
Inventory: 45
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 5-DIP Module
Weight 0.035lb 15.88g
Technical
Operating Temperature -25°C~70°C With Derating
Published 2012
Series ECE (5W)
Size / Dimension 1.00Lx1.00W x 0.60 H 25.4mmx25.4mmx15.2mm
Feature OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Type Enclosed
Applications ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 5W
Max Power Dissipation 5W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 25.4mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code S-XDMA-P5
Number of Outputs 1
Approval Agency CSA, cUL, EN, UL
Efficiency 85%
Output Voltage 48V
Max Output Current 100mA
Input Voltage-Nom 115V
Trim/Adjustable Output NO
Voltage - Input 85V~264VAC 120V~370VDC
Output Current 100mA
Output Power 5W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 100mA
Max Output Power 5W
Line Regulation ±0.5%
Load Regulation ±1%
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V
Dimensions
Height 15.24mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
