DSL240PS12-I
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

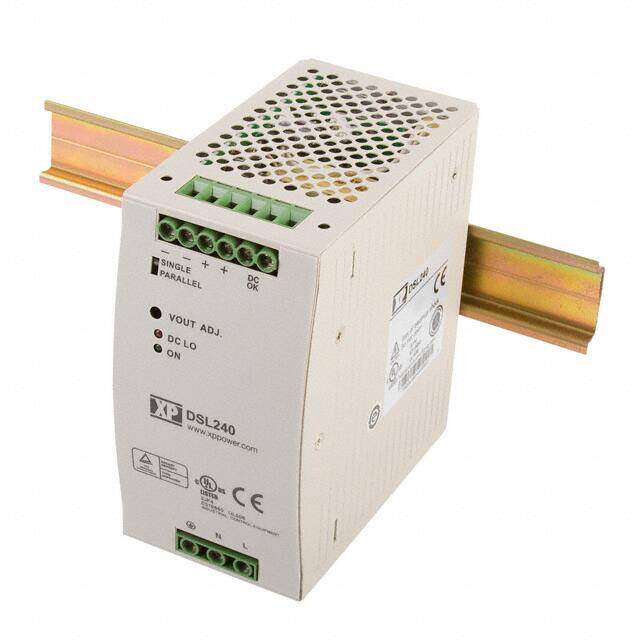

XP POWER DSL240PS12-IAC/DC DIN Rail Power Supply, Ultra Slim, Adjustable, Fixed, 88 V, 264 V, 192 W, 12 V, 16 A
PDF
/
Buying Options
Total Price: USD $272.25
Unit Price: USD $272.24828
≥1 USD $272.24828
≥10 USD $256.838
≥100 USD $242.3
≥500 USD $228.58491
≥1000 USD $215.64614
Inventory: 949
Minimum: 1
-
+
Technical Details
Technical
Voltage - Isolation 3kV
Output Voltage 12V
Max Output Current 16A
Max Voltage Rating (AC) 264V
Voltage - Input 88V~264VAC
Output Power 192W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Min Input Voltage 88V
Max Input Voltage 264V
Current - Output 1 16A
Max Output Power 192W
Minimum Load Required No
Nominal Output Voltage 12V
Min Input Voltage (AC) 88V
Efficiency 90%
Approval Agency CE, cULus, TUV
Number of Outputs 1
Max Power Dissipation 192W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, Load Sharing, Universal Input
Size / Dimension 4.59Lx2.52W x 5.65 H 116.6mmx64.0mmx143.5mm
Series DSL240 (240W)
Published 2012
Operating Temperature -40°C~70°C With Derating
Dimensions
Height 143.51mm
Width 64mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Physical
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 21 Weeks
