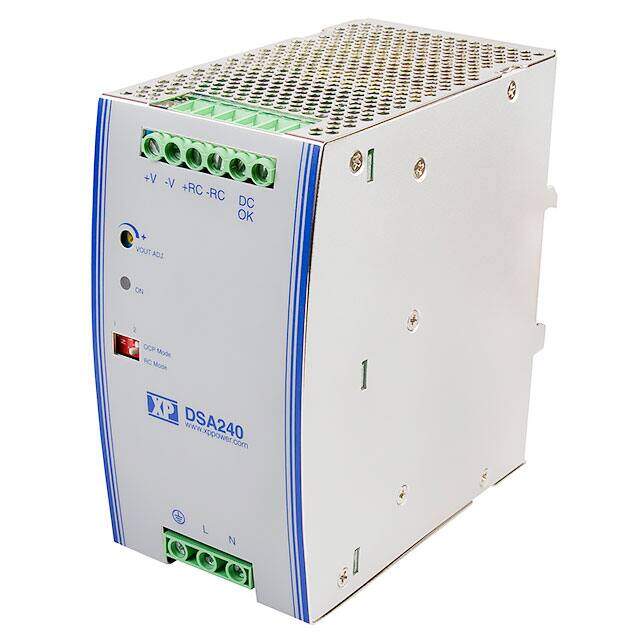

DSA240PS48

XP Power
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description XP POWER DSA240PS48 AC/DC DIN Rail Power Supply, Ultra Slim, Adjustable, Fixed, 1 Output, 90 VAC, 264 VAC, 240 W
PDF
/
Inventory: 6708
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC Unknown

Dimensions

Width 65.786mm
Length 117.856mm
Height 125.222mm

Technical

Max Input Voltage (AC) 264V
Min Input Voltage (AC) 90V
Minimum Load Required No
Max Output Power 240W
Current - Output 1 5A
Output Power 240W
Voltage - Input 90V~264VAC
Current - Output (Max) 5A
Max Voltage Rating (AC) 264V
Voltage - Output 1 48V
Max Output Current 5A
Voltage - Isolation 3kV
Efficiency 92%
Number of Outputs 1
Max Power Dissipation 240W
Power (Watts) 240W
Applications ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature Adjustable Output, PFC, Remote On/Off, Universal Input
Size / Dimension 4.64Lx2.59W x 4.93 H 117.8mmx65.8mmx125.2mm
Series DSA240 (240W)
Published 2013
Operating Temperature -25°C~70°C With Derating

Physical

Mounting Type DIN Rail
Mount DIN Rail

Supply Chain

Factory Lead Time 13 Weeks
