DNR480TS24-I
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

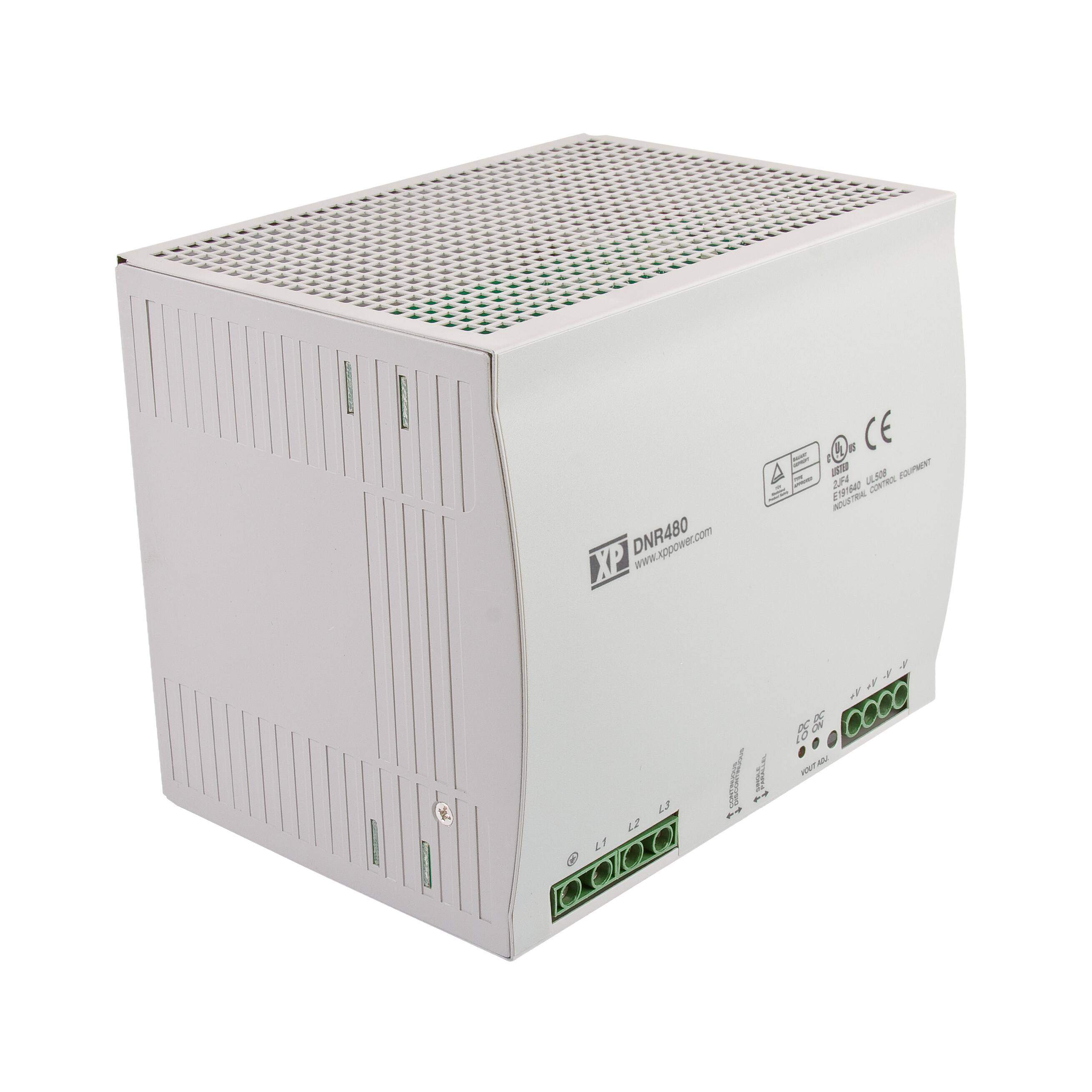

XP POWER DNR480TS24-I AC/DC DIN Rail Power Supply, Industrial, Adjustable, Fixed, 340 V, 575 V, 480 W, 24 V, 20 A
PDF
/
Buying Options
Total Price: USD $204
Unit Price: USD $204
≥1 USD $204
≥10 USD $192.45283
≥100 USD $181.55927
Inventory: 6071
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 142mm
Technical
Min Input Voltage (AC) 340V
Nominal Output Voltage 24V
Max Output Power 480W
Current - Output 1 20A
Max Input Voltage 575V
Min Input Voltage 340V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 480W
Output Current 20A
Voltage - Input 340V~575VAC 3 Phase
Max Voltage Rating (AC) 575V
Max Output Current 20A
Output Voltage 24V
Voltage - Isolation 3kV
Efficiency 90%
Approval Agency EN, UL
Number of Outputs 1
Max Power Dissipation 480W
Power Rating 480W
Subcategory Power Supply Modules
Applications Hazardous Locations, Industrial, ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, Load Sharing
Size / Dimension 4.39Lx5.91W x 4.87 H 111.3mmx150.0mmx123.6mm
Series DNR-TS (480W)
Published 2008
Operating Temperature -40°C~70°C With Derating
Physical
Weight 1.92kg
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 21 Weeks
