DNR30US24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

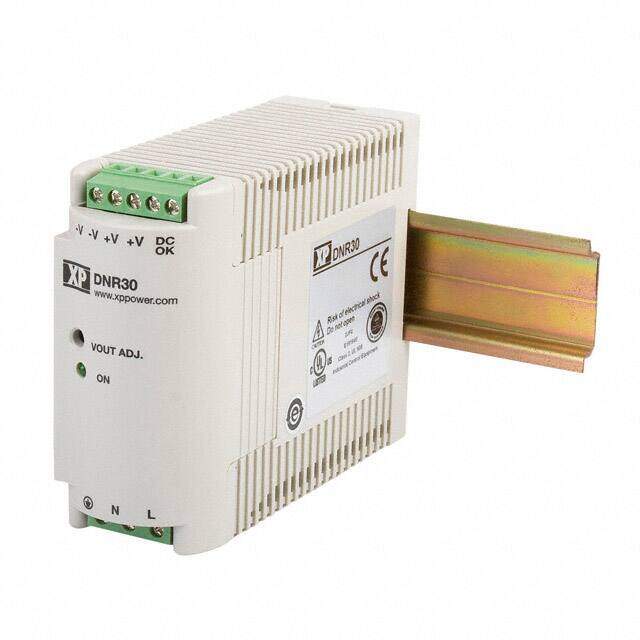

XP POWER DNR30US24.AC/DC DIN Rail Power Supply, Industrial, Fixed, 85 V, 264 V, 30 W, 24 V, 1.25 A
PDF
/
Buying Options
Total Price: USD $45.28
Unit Price: USD $45.28108
≥1 USD $45.28108
≥10 USD $42.718
≥100 USD $40.3
≥500 USD $38.01887
≥1000 USD $35.86686
Inventory: 6418
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 90mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Nominal Output Voltage 24V
Minimum Load Required No
Max Output Power 30W
Current - Output 1 1.25A
Max Input Voltage 264V
Min Input Voltage 85V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 30W
Output Current 1.25A
Voltage - Input 90V~264VAC 90V~375VDC
Max Voltage Rating (AC) 264V
Max Output Current 1.25A
Output Voltage 24V
Voltage - Isolation 3kV
Efficiency 86%
Approval Agency CE
Number of Outputs 1
Max Power Dissipation 30W
Power Rating 30W
Subcategory Power Supply Modules
Applications Hazardous Locations, Industrial, ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, Universal Input
Size / Dimension 4.53Lx1.59W x 3.54 H 115.0mmx40.5mmx90.0mm
Series DNR (30W)
Published 2007
Operating Temperature -20°C~70°C With Derating
Physical
Weight 275g
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 21 Weeks
