DNR18US15
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

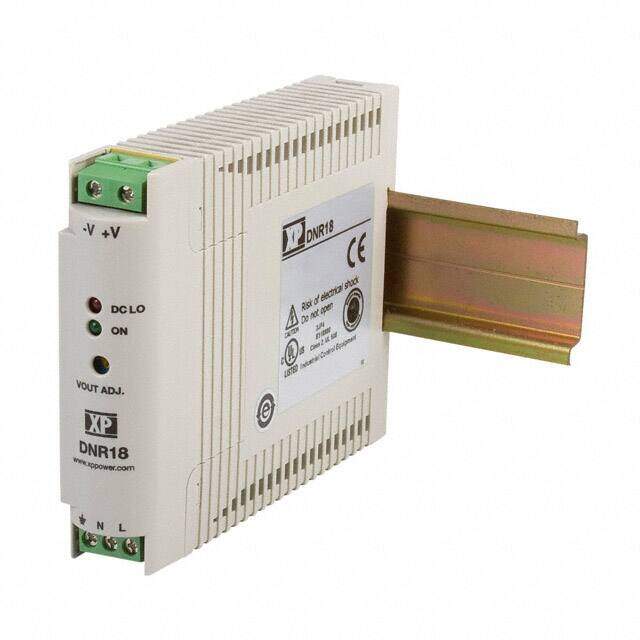

XP POWER DNR18US15 AC/DC DIN Rail Power Supply, Industrial, Fixed, 1 Output, 90 VAC, 264 VAC, 18 W, 15 VDC
PDF
/
Buying Options
Total Price: USD $38.2
Unit Price: USD $38.2024
≥1 USD $38.2024
≥10 USD $36.04
≥100 USD $34
≥1000 USD $30.25988
≥3000 USD $28.54706
Inventory: 4146
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 88.5mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 90V
Nominal Output Voltage 15V
Minimum Load Required No
Max Output Power 18W
Current - Output 1 1.2A
Max Input Voltage 264V
Min Input Voltage 90V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 18W
Output Current 1.2A
Voltage - Input 90V~264VAC 120V~375VDC
Max Voltage Rating (AC) 264V
Max Output Current 1.2A
Output Voltage 15V
Voltage - Isolation 3kV
Efficiency 77%
Approval Agency CE
Number of Outputs 1
Max Power Dissipation 18W
Power Rating 18W
Subcategory Power Supply Modules
Applications Hazardous Locations, Industrial, ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, Universal Input
Size / Dimension 4.53Lx0.89W x 3.48 H 115.0mmx22.5mmx88.5mm
Series DNR (18W)
Published 2007
Operating Temperature -20°C~70°C With Derating
Physical
Weight 150g
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 21 Weeks
