DNR120TS12
RoHS
RoHS compliant
RoHS compliantPackage 120
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

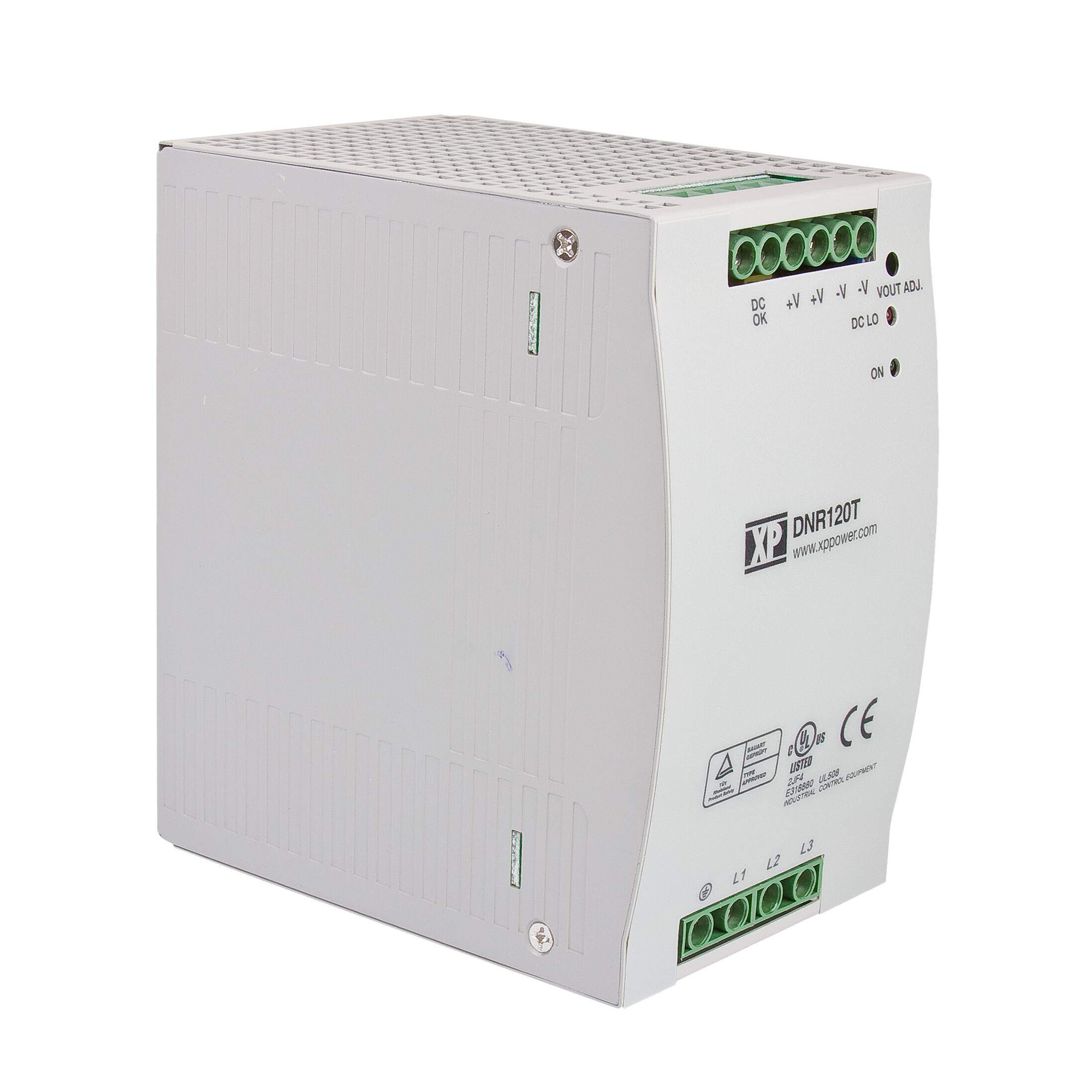

XP POWER DNR120TS12 AC/DC DIN Rail Power Supply, Industrial, Adjustable, Fixed, 1 Output, 340 VAC, 575 VAC, 120 W
PDF
/
Buying Options
Total Price: USD $104.94
Unit Price: USD $104.94
≥1 USD $104.94
≥10 USD $99
≥100 USD $93.39623
Inventory: 120
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 21 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Package / Case 120
Weight 800g
Technical
Operating Temperature -40°C~70°C With Derating
Published 2008
Series DNR-TS (120W)
Size / Dimension 4.39Lx2.93W x 4.87 H 111.3mmx74.3mmx123.6mm
Feature Adjustable Output, Load Sharing
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications Hazardous Locations, Industrial, ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 120W
Max Power Dissipation 120W
Number of Outputs 1
Approval Agency EN, UL
Efficiency 87%
Voltage - Isolation 3kV
Output Voltage 12V
Max Output Current 10A
Max Supply Voltage 575V
Min Supply Voltage 340V
Max Voltage Rating (AC) 575V
Voltage - Input 340V~575VAC 3 Phase
Output Current 10A
Output Power 120W
Max Output Voltage 14.5V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Current - Output 1 10A
Min Output Voltage 11.4V
Max Output Power 120W
Nominal Output Voltage 12V
Min Input Voltage (AC) 340V
Dimensions
Height 123.698mm
Width 74.3mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
