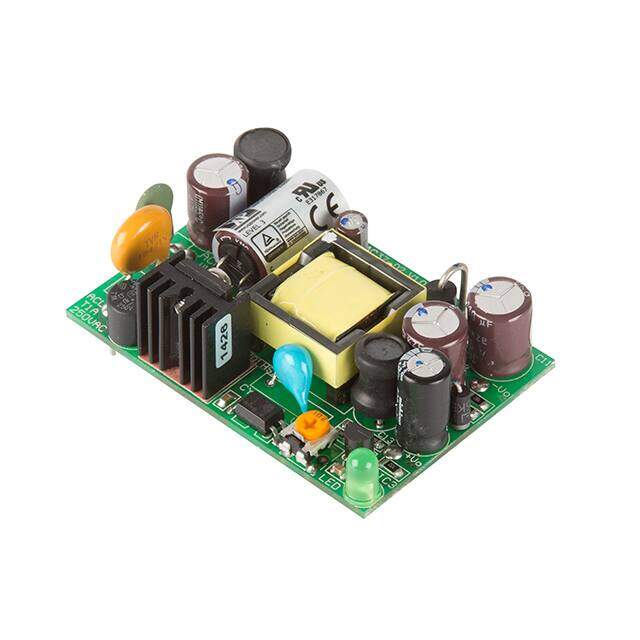

CU10-10
RoHS
/
Package 4-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description
XP POWER CU10-10 AC/DC PCB Mount Power Supply, Medical, Adjustable, Fixed, 1 Output, 85 V, 264 V, 10 W, 5 V
PDF
/
Buying Options
Total Price: USD $35
Unit Price: USD $35
≥1 USD $35
≥10 USD $33.01887
≥100 USD $31.14988
≥500 USD $29.38667
≥1000 USD $27.72328
Inventory: 9638
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mounting Type Through Hole
Package / Case 4-DIP Module
Technical
Operating Temperature 0°C~65°C With Derating
Published 2007
Series CU10 (10W)
Size / Dimension 2.56Lx1.77W x 0.91 H 65.0mmx45.0mmx23.1mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Open Frame
Applications ITE (Commercial), Medical
Power Rating 10W
Depth 65.02mm
Number of Outputs 1
Efficiency 70%
Output Voltage 5V
Max Output Current 2A
Voltage - Input 85V~264VAC
Output Current 2A
Output Power 10W
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 2A
Max Output Power 10W
Nominal Output Voltage 5V
Line Regulation 0.5%
Load Regulation 1%
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V
Dimensions
Height 23mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
