BCS100US27-C
RoHS
/
Package 100
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

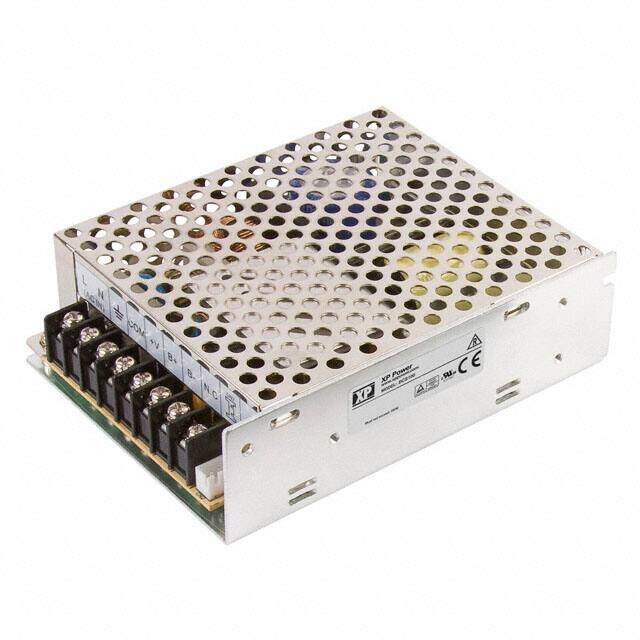

XP POWER BCS100US27-C AC/DC Enclosed Power Supply, Adjustable, Fixed, 27.6V, 3.65A, 27.6V, 1.7A
PDF
/
Inventory: 9857
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Chassis, Chassis Mount
Mounting Type Chassis Mount
Package / Case 100
Technical
Operating Temperature -20°C~70°C With Derating
Published 2014
Series BCS (100W)
Size / Dimension 5.09Lx3.83W x 1.47 H 129.5mmx97.5mmx37.5mm
Feature Adjustable Output, DC Input Capable, Universal Input
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed
Applications ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 100W
Max Power Dissipation 100W
Number of Outputs 2
Approval Agency EN, UL
Efficiency 88%
Voltage - Isolation 3kV
Output Voltage 27.6V
Max Output Current 1.7A
Current - Output (Max) 3.65A 1.7A
Voltage - Input 90V~264VAC
Output Current 3.65A
Output Power 100W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Min Input Voltage 90V
Max Input Voltage 264V
Current - Output 1 3.65A
Max Output Power 100W
Minimum Load Required No
Nominal Output Voltage 27.6V
Current - Output 2 1.7A
Min Input Voltage (AC) 27.6V
Max Input Voltage (AC) 264V
Dimensions
Height 37.338mm
Width 97.5mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
