2467040000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

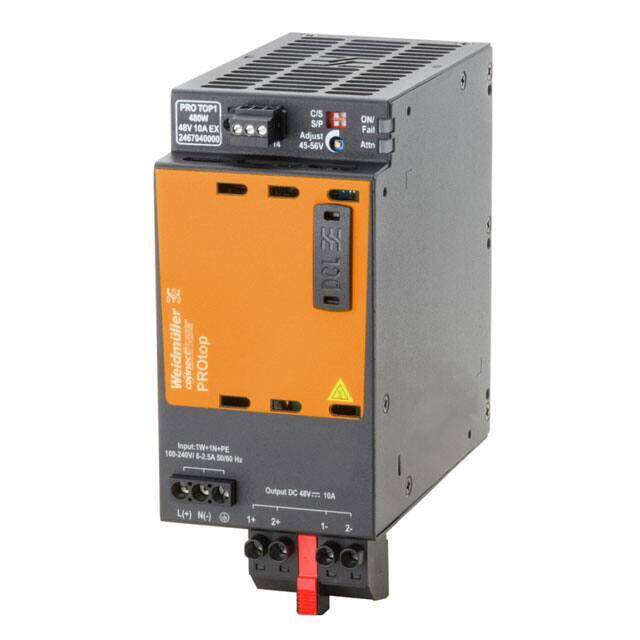

AC/DC CONVERTER 48V 480W
PDF
/
Buying Options
Total Price: USD $372.06
Unit Price: USD $372.0552
≥1 USD $372.0552
≥10 USD $365.40768
Inventory: 93
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type DIN Rail
Technical
Operating Temperature -40°C~70°C With Derating
Series PRO TOP1 (480W)
Size / Dimension 4.92Lx2.68W x 5.12 H 125.0mmx68.0mmx130.0mm
Feature Adjustable Output, IP20, Load Sharing
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed, Conformal Coated
Applications ITE (Commercial)
Power (Watts) 480W
Number of Outputs 1
Efficiency 93%
Voltage - Isolation 4kV
Voltage - Output 1 48V
Current - Output (Max) 10A
Voltage - Input 85V~277VAC 80V~410VDC
Compliance
RoHS Status RoHS Compliant
