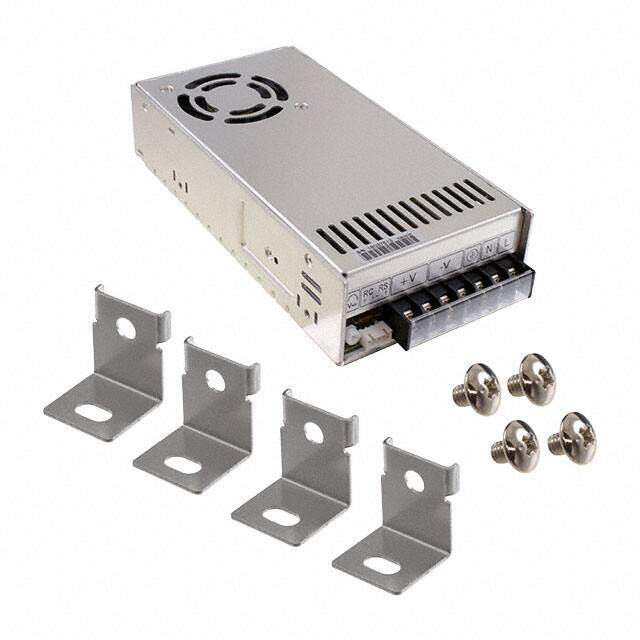

TXL 230-48S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 48V 230W
PDF
/
Inventory: 6723
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Chassis Mount
Surface Mount NO
Technical
Operating Temperature -20°C~70°C With Derating
Published 2012
Series TXL 230 (230W)
Size / Dimension 7.80Lx3.90W x 1.77 H 198.1mmx99.1mmx45.0mm
Feature Adjustable Output, Remote On/Off, Remote Sense, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 10
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 230W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 1
Approval Agency CE, cURus
Efficiency 84%
Voltage - Isolation 3kV
Output Voltage 48V
Voltage - Output 1 48V
Input Voltage-Nom 100V
Trim/Adjustable Output YES
Current - Output (Max) 4.8A
Voltage - Input 85V~264VAC 120V~375VDC
Total Power Output-Max 230W
Minimum Load Required Yes
Compliance
RoHS Status ROHS3 Compliant
