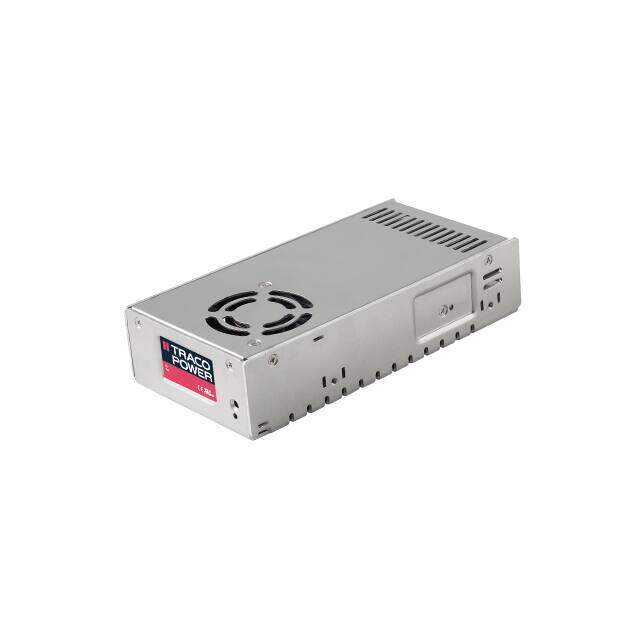

TXL 230-24S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 230W
PDF
/
Inventory: 8569
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -20°C~70°C With Derating
Published 2012
Series TXL 230 (230W)
Size / Dimension 7.80Lx3.90W x 1.77 H 198.1mmx99.1mmx45.0mm
Feature Adjustable Output, Remote On/Off, Remote Sense, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 230W
Number of Outputs 1
Approval Agency CE, cURus
Efficiency 84%
Voltage - Isolation 3kV
Voltage - Output 1 24V
Current - Output (Max) 9.6A
Voltage - Input 85V~264VAC 120V~375VDC
Compliance
RoHS Status ROHS3 Compliant
