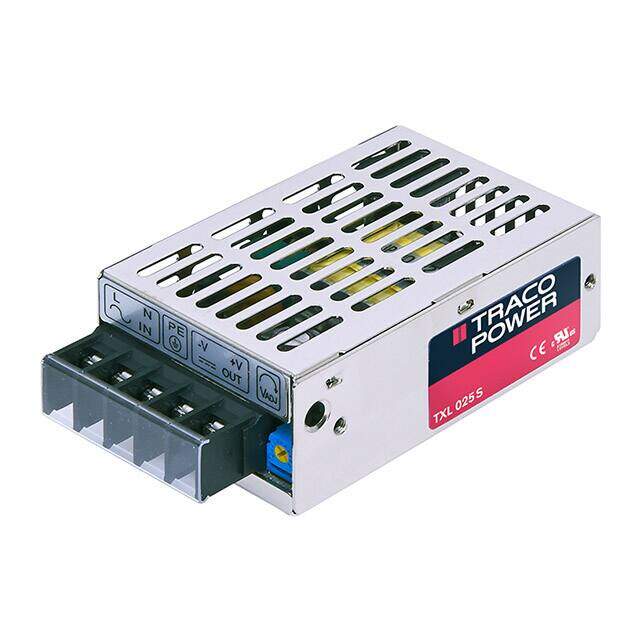

TXL 025-24S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 26W
PDF
/
Buying Options
Total Price: USD $36.33
Unit Price: USD $36.3264
≥1 USD $36.3264
≥10 USD $34.18712
≥100 USD $33.118624
≥500 USD $32.050128
≥1000 USD $30.981808
≥3000 USD $29.913453
Inventory: 113
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Chassis Mount
Surface Mount NO
Technical
Operating Temperature -20°C~70°C With Derating
Published 2010
Series TXL 025 (25W)
Size / Dimension 3.11Lx2.01W x 1.12 H 79.0mmx51.1mmx28.4mm
Feature Adjustable Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 5
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 26W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-MXMA-X5
Number of Outputs 1
Approval Agency CE, cURus
Efficiency 84%
Voltage - Isolation 3kV
Output Voltage 24V
Voltage - Output 1 24V
Input Voltage-Nom 100V
Trim/Adjustable Output YES
Current - Output (Max) 1.1A
Voltage - Input 85V~264VAC 120V~375VDC
Total Power Output-Max 25W
Compliance
RoHS Status ROHS3 Compliant
