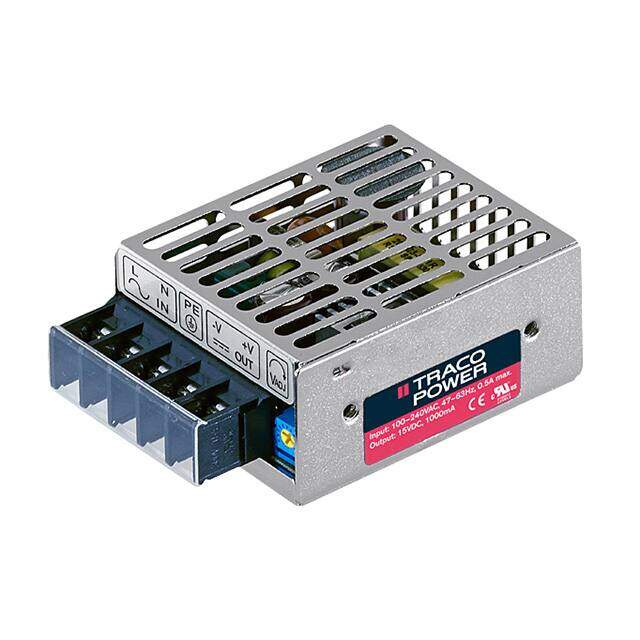

TXL 015-15S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 15V 15W
PDF
/
Buying Options
Total Price: USD $27.19
Unit Price: USD $27.192582
≥1 USD $27.192582
≥10 USD $25.653374
≥100 USD $24.2013
≥500 USD $22.831422
≥1000 USD $21.539068
Inventory: 1132
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Chassis Mount
Surface Mount NO
Technical
Operating Temperature -20°C~70°C With Derating
Published 2010
Series TXL 05 (15W)
Size / Dimension 2.44Lx2.01W x 1.10 H 62.0mmx51.1mmx27.9mm
Feature Adjustable Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 6
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 15W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XXMA-X6
Number of Outputs 1
Approval Agency CE, cURus
Efficiency 84%
Voltage - Isolation 3kV
Output Voltage 15V
Voltage - Output 1 15V
Input Voltage-Nom 100V
Trim/Adjustable Output YES
Current - Output (Max) 1A
Voltage - Input 85V~264VAC 120V~375VDC
Minimum Load Required Yes
Compliance
RoHS Status ROHS3 Compliant
