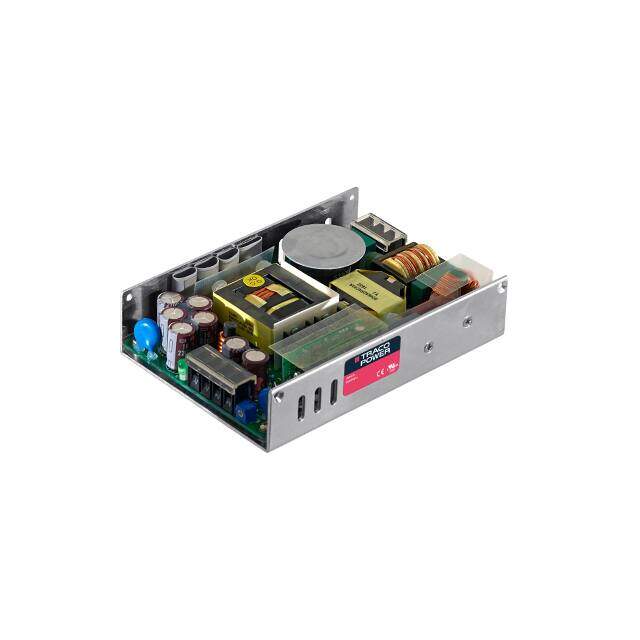

TXH 240-124
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 240W
PDF
/
Buying Options
Total Price: USD $118.4
Unit Price: USD $118.404
≥1 USD $118.404
≥10 USD $111.1176
≥100 USD $107.474048
≥500 USD $103.831024
≥1000 USD $90.178
Inventory: 119
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Chassis Mount
Surface Mount NO
Technical
Operating Temperature -10°C~70°C With Derating
Published 2010
Series TXH 240 (240W)
Size / Dimension 5.91Lx4.17W x 1.38 H 150.1mmx105.9mmx35.1mm
Feature Adjustable Output, Remote On/Off, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 7
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 240W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code R-MXMA-X7
Number of Outputs 1
Approval Agency CB, CE, cURus
Efficiency 92%
Voltage - Isolation 4kV
Output Voltage 24V
Voltage - Output 1 24V
Input Voltage-Nom 100V
Trim/Adjustable Output YES
Current - Output (Max) 10A
Voltage - Input 90V~264VAC 120V~370VDC
Total Power Output-Max 240W
Minimum Load Required No
Compliance
RoHS Status ROHS3 Compliant
