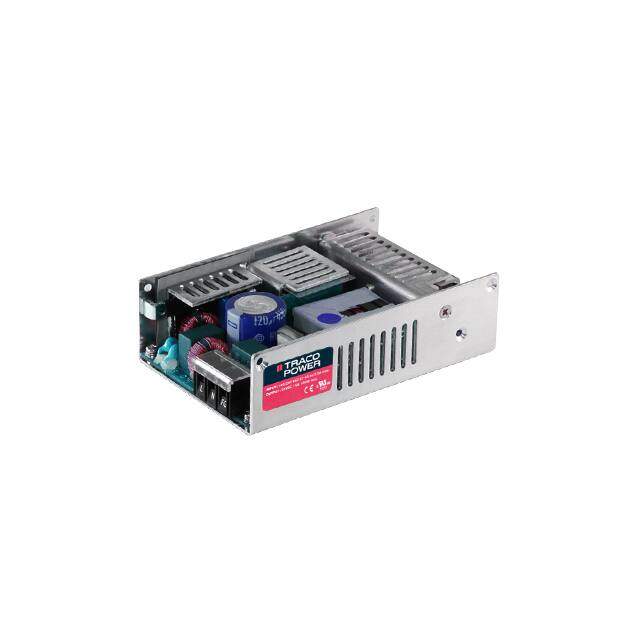

TXH 120-124
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 120W
PDF
/
Buying Options
Total Price: USD $92.17
Unit Price: USD $92.1712
≥1 USD $92.1712
≥10 USD $86.50312
≥100 USD $83.66688
≥500 USD $80.83064
≥1000 USD $77.9944
≥3000 USD $70.202
Inventory: 86
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Chassis Mount
Surface Mount NO
Technical
Operating Temperature -25°C~70°C With Derating
Published 2010
Series TXH 120 (120W)
Size / Dimension 5.39Lx3.23W x 1.50 H 136.9mmx82.0mmx38.1mm
Feature Adjustable Output, Remote On/Off, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 7
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 120W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code R-MXMA-X7
Number of Outputs 1
Approval Agency CB, CE, cURus
Efficiency 91%
Voltage - Isolation 4kV
Output Voltage 24V
Voltage - Output 1 24V
Input Voltage-Nom 100V
Trim/Adjustable Output YES
Current - Output (Max) 5A
Voltage - Input 90V~264VAC 120V~370VDC
Minimum Load Required No
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
