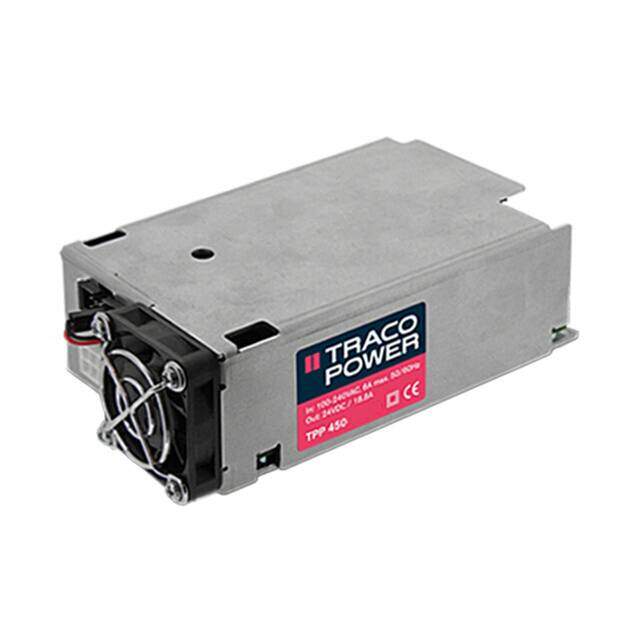

TPP 450-112-M
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 450W
PDF
/
Buying Options
Total Price: USD $240.94
Unit Price: USD $240.944
≥1 USD $240.944
≥10 USD $225.88368
≥100 USD $218.354752
≥500 USD $186.373088
Inventory: 38
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Minimum Load Required No
Total Power Output-Max 450W
Voltage - Input 85V~264VAC 120V~370VDC
Current - Output (Max) 37.5A
Trim/Adjustable Output YES
Input Voltage-Nom 100V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Isolation 4kV
Efficiency 91%
Approval Agency CB, CE, cURus
Number of Outputs 1
JESD-30 Code R-XXMA-X22
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 450W
Applications Medical
Type Enclosed
Number of Terminations 22
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, DC Input Capable, PFC, Standby Output, Remote On/Off, Universal Input
Size / Dimension 5.83Lx3.15W x 1.60 H 148.1mmx80.0mmx40.6mm
Series TPP 450 (450W)
Operating Temperature -40°C~80°C With Derating
Physical
Surface Mount NO
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 13 Weeks
