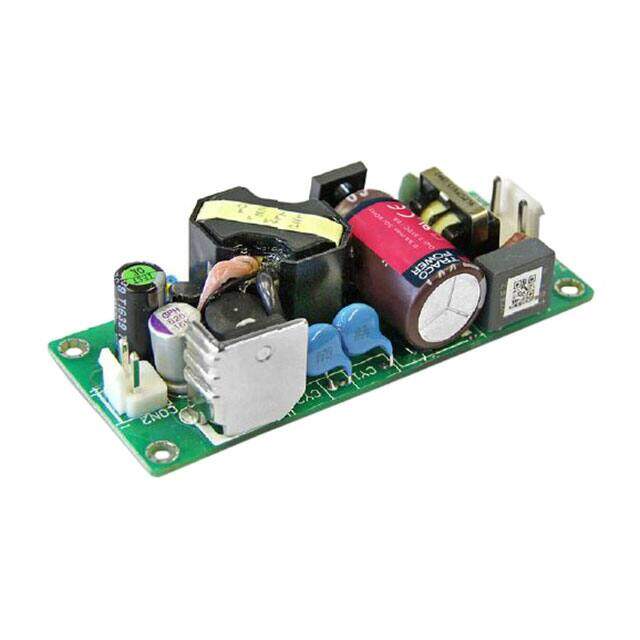

TPP 30-124A-J
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 30W
PDF
/
Buying Options
Total Price: USD $37.51
Unit Price: USD $37.5144
≥1 USD $37.5144
≥10 USD $35.31
≥100 USD $34.206656
≥500 USD $33.103312
≥1000 USD $31.99988
≥3000 USD $30.896448
Inventory: 177
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Chassis Mount
Surface Mount NO
Technical
Operating Temperature -40°C~85°C With Derating
Series TPP 30A-J (30W)
Size / Dimension 3.34Lx1.36W x 0.77 H 84.8mmx34.5mmx19.6mm
Feature Adjustable Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 5
ECCN Code EAR99
Type Open Frame
Applications Household Appliances, ITE (Commercial), Medical
Power (Watts) 30W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code R-XXFM-X5
Number of Outputs 1
Approval Agency CB, CE, cURus
Efficiency 89.5%
Voltage - Isolation 4kV
Output Voltage 24V
Voltage - Output 1 24V
Input Voltage-Nom 115V
Trim/Adjustable Output YES
Current - Output (Max) 1.25A
Voltage - Input 85V~264VAC 120V~370VDC
Total Power Output-Max 30W
Minimum Load Required No
Compliance
RoHS Status ROHS3 Compliant
