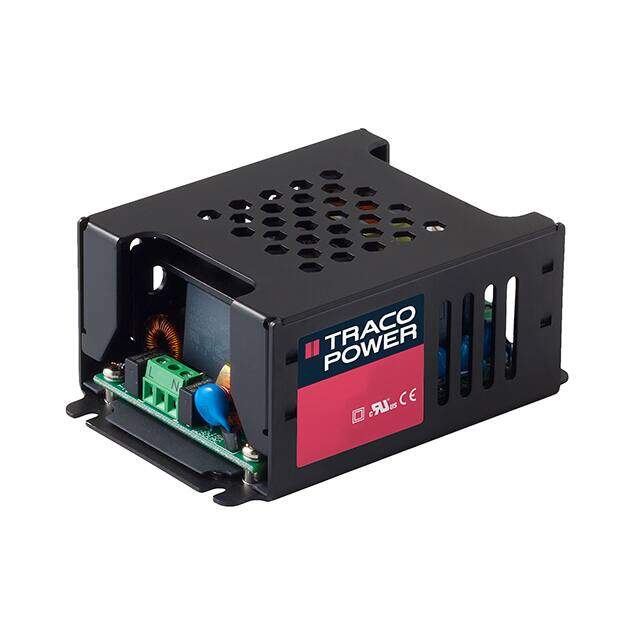

TPP 100-128
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 28V 100W
PDF
/
Buying Options
Total Price: USD $91.6
Unit Price: USD $91.5992
≥1 USD $91.5992
≥10 USD $85.96104
≥100 USD $77.50556
≥500 USD $69.762
Inventory: 41
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Chassis Mount
Surface Mount NO
Technical
Operating Temperature -25°C~85°C With Derating
Series TPP 100 (100W)
Size / Dimension 3.60Lx2.44W x 1.54 H 91.4mmx62.0mmx39.1mm
Feature Adjustable Output, PFC, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 7
ECCN Code EAR99
Type Enclosed
Applications ITE (Commercial), Medical
Power (Watts) 100W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code R-MDMA-X7
Number of Outputs 1
Approval Agency CB, CE, cURus
Efficiency 92%
Voltage - Isolation 4kV
Output Voltage 28V
Voltage - Output 1 28V
Input Voltage-Nom 115V
Trim/Adjustable Output YES
Current - Output (Max) 3.58A
Voltage - Input 85V~264VAC 120V~370VDC
Protections OUTPUT OVER VOLTAGE
Minimum Load Required No
Switching Frequency-Max 75kHz
Ripple Voltage (Main Out) 0.06363Vrms
Warm-up Time 1 s
Compliance
RoHS Status ROHS3 Compliant
