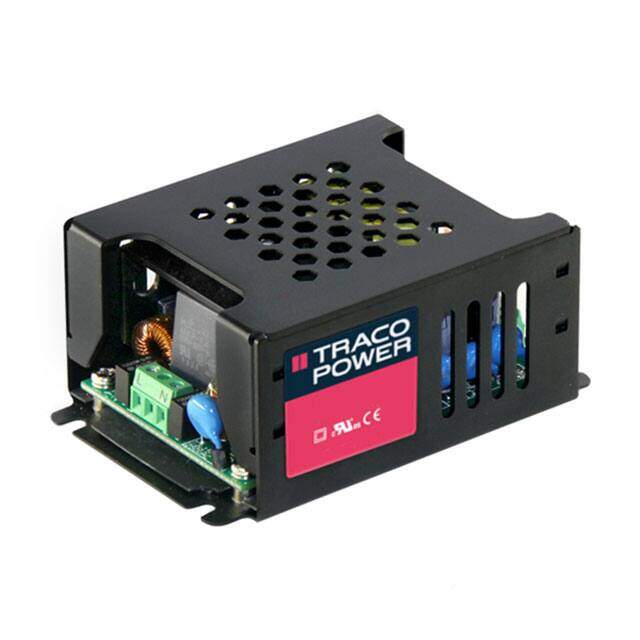

TPP 100-112
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 100W
PDF
/
Buying Options
Total Price: USD $94.64
Unit Price: USD $94.64083
≥1 USD $94.64083
≥10 USD $89.2838
≥100 USD $84.23
≥500 USD $79.46226
Inventory: 319
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Minimum Load Required No
Voltage - Input 85V~264VAC 120V~370VDC
Current - Output (Max) 8.34A
Trim/Adjustable Output YES
Input Voltage-Nom 115V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Isolation 4kV
Efficiency 91%
Approval Agency CB, CE, cURus
Number of Outputs 1
JESD-30 Code R-XXMA-X7
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 100W
Applications ITE (Commercial), Medical
Type Enclosed
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, IP20, Universal Input
Size / Dimension 3.60Lx2.44W x 1.54 H 91.4mmx62.0mmx39.1mm
Series TPP 100 (100W)
Published 2014
Operating Temperature -25°C~85°C With Derating
Physical
Surface Mount NO
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 13 Weeks
