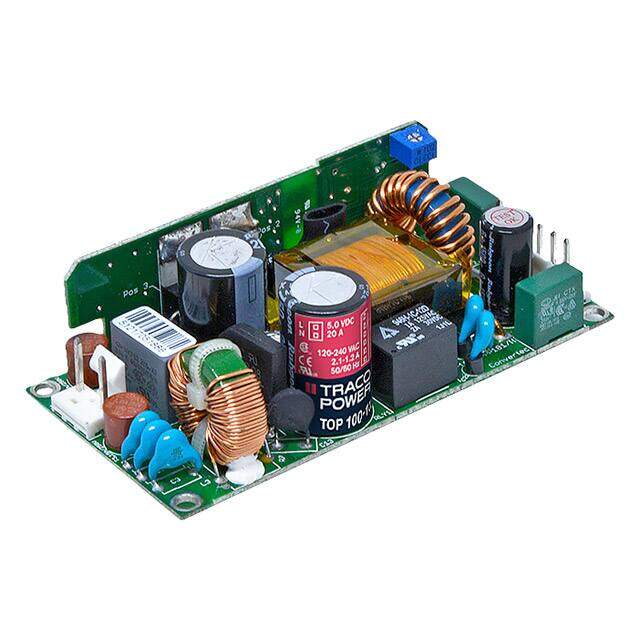

TOP 100-112
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 100W
PDF
/
Buying Options
Total Price: USD $83.28
Unit Price: USD $83.2846
≥1 USD $83.2846
≥10 USD $78.57038
≥100 USD $74.123
≥500 USD $69.92736
Inventory: 119
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Input 90V~132VAC 187V~264VAC
Current - Output (Max) 8.3A
Voltage - Output 1 12V
Voltage - Isolation 3kV
Efficiency 92%
Approval Agency CB, CE, cCSAus, cURus, SIQ
Number of Outputs 1
Power (Watts) 100W
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output
Size / Dimension 4.00Lx2.00W x 1.25 H 101.6mmx50.8mmx31.8mm
Series TOP 100 (100W)
Published 2008
Operating Temperature -25°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 6 Weeks
Alternative Model
