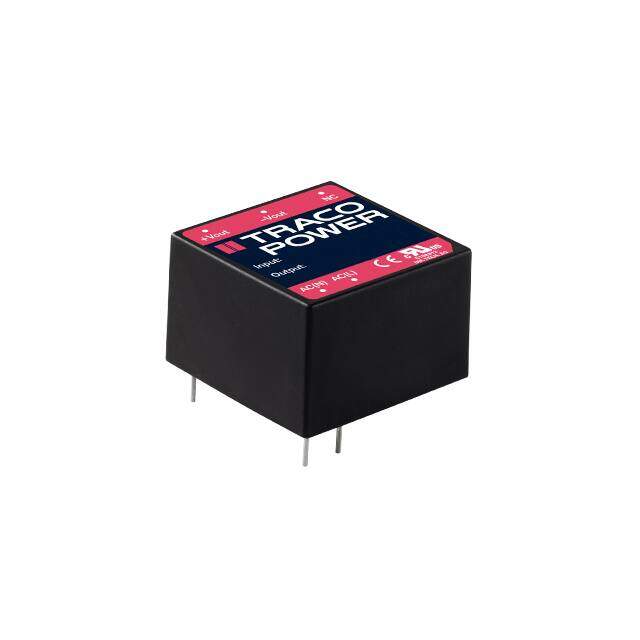

TMPS 05-112
RoHS
RoHS compliant
RoHS compliantPackage 5-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description
AC/DC CONVERTER 12V 5W
PDF
/
Buying Options
Total Price: USD $32.57
Unit Price: USD $32.57191
≥1 USD $32.57191
≥10 USD $30.72821
≥100 USD $28.98888
≥500 USD $27.348
≥1000 USD $25.8
≥3000 USD $24.33962
Inventory: 1520
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Through Hole
Package / Case 5-DIP Module
Surface Mount NO
Technical
Operating Temperature -25°C~70°C With Derating
Published 2015
Series TMPS 05 (5W)
Size / Dimension 1.00Lx1.00W x 0.64 H 25.4mmx25.4mmx16.3mm
Feature Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 5
ECCN Code EAR99
Type Enclosed
Applications Household Appliances, ITE (Commercial)
Power (Watts) 5W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code S-XDMA-P5
Number of Outputs 1
Approval Agency CB, CE, cURus
Efficiency 82%
Output Voltage 12V
Voltage - Output 1 12V
Input Voltage-Nom 115V
Trim/Adjustable Output NO
Current - Output (Max) 416mA
Voltage - Input 85V~264VAC 120V~370VDC
Total Power Output-Max 5W
Line Regulation 1%
Load Regulation ±1%
Dimensions
Length 25.4mm
Width 25.4mm
Compliance
RoHS Status ROHS3 Compliant
