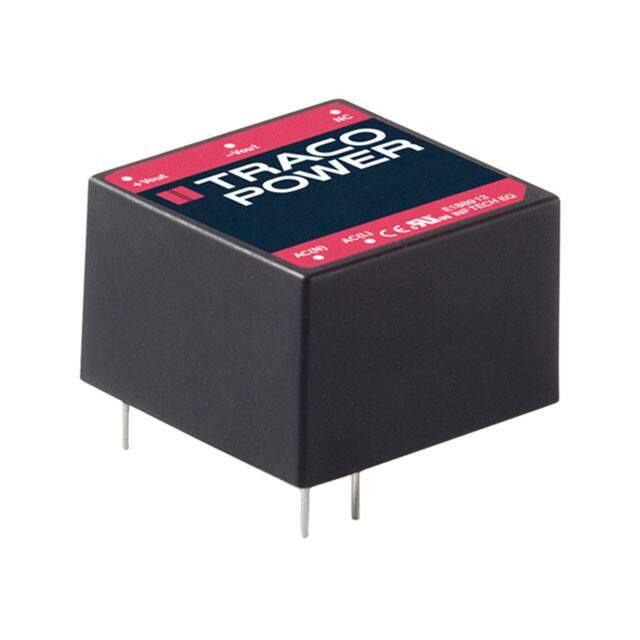

TMPS 03-112
RoHS
RoHS compliant
RoHS compliantPackage 5-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description
AC/DC CONVERTER 12V 3W
PDF
/
Buying Options
Total Price: USD $16.03
Unit Price: USD $16.03346
≥1 USD $16.03346
≥10 USD $15.1259
≥100 USD $14.26972
≥500 USD $13.462
≥1000 USD $12.7
≥3000 USD $11.98113
Inventory: 2821
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Through Hole
Package / Case 5-DIP Module
Surface Mount NO
Technical
Operating Temperature -25°C~70°C With Derating
Published 2015
Series TMPS 03 (3W)
Size / Dimension 1.00Lx1.00W x 0.64 H 25.4mmx25.4mmx16.3mm
Feature Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 5
ECCN Code EAR99
Type Enclosed
Applications Household Appliances, ITE (Commercial)
Power (Watts) 3W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code S-XDMA-P5
Number of Outputs 1
Approval Agency CB, CE, cURus
Efficiency 77%
Output Voltage 12V
Voltage - Output 1 12V
Input Voltage-Nom 115V
Trim/Adjustable Output NO
Current - Output (Max) 250mA
Voltage - Input 85V~264VAC 120V~370VDC
Total Power Output-Max 3W
Line Regulation 1%
Load Regulation ±1%
Dimensions
Length 25.4mm
Width 25.4mm
Compliance
RoHS Status ROHS3 Compliant
