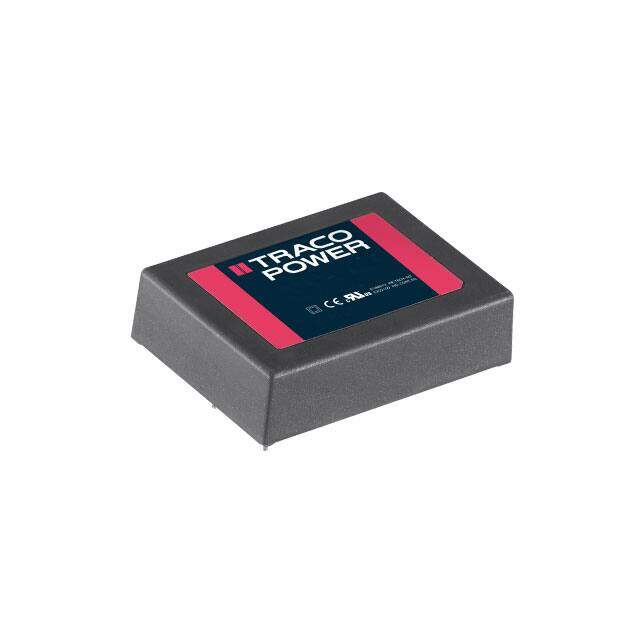

TMP 15512
RoHS
RoHS compliant
RoHS compliantPackage 7-DIP Module, 5 Leads
Category Power Supplies - Board Mount / AC DC Converters
Description
AC/DC CONVERTER 5V +/-12V 15W
PDF
/
Buying Options
Total Price: USD $43.08
Unit Price: USD $43.0848
≥1 USD $43.0848
≥10 USD $40.47472
≥100 USD $39.169504
≥500 USD $37.86376
≥1000 USD $36.558104
≥3000 USD $32.318
Inventory: 75
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Through Hole
Package / Case 7-DIP Module, 5 Leads
Surface Mount NO
Technical
Operating Temperature -25°C~70°C With Derating
Published 2010
Series TMP (15W)
Size / Dimension 2.91Lx2.13W x 0.77 H 74.0mmx54.0mmx19.5mm
Feature Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 7
ECCN Code EAR99
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 15W
Additional Feature ALSO HAS OUTPUT VOLTAGE 12 V AND -12 V
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PXMA-X7
Number of Outputs 3
Approval Agency CB, CE, cULus, cURus
Efficiency 74%
Output Voltage 5V
Voltage - Output 1 5V
Input Voltage-Nom 100V
Trim/Adjustable Output NO
Current - Output (Max) 2A 200mA 200mA
Voltage - Input 85V~264VAC 120V~370VDC
Voltage - Output 2 12V
Total Power Output-Max 15W
Voltage - Output 3 -12V
Line Regulation 1%, 3%
Load Regulation ±1%
Compliance
RoHS Status ROHS3 Compliant
