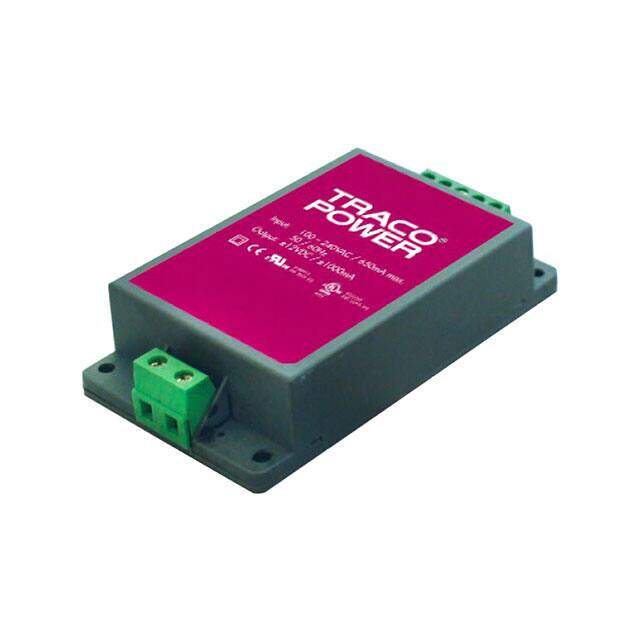

TMP 15252C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 5V 12V 15W
PDF
/
Buying Options
Total Price: USD $49.7
Unit Price: USD $49.70357
≥1 USD $49.70357
≥10 USD $46.89016
≥100 USD $44.236
Inventory: 89
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Chassis Mount
Surface Mount NO
Technical
Operating Temperature -25°C~70°C With Derating
Published 2014
Series TMP (15W)
Size / Dimension 3.78Lx2.13W x 0.92 H 96.0mmx54.1mmx23.4mm
Feature Adjustable Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 7
ECCN Code EAR99
Type Enclosed
Applications Industrial, ITE (Commercial)
Power (Watts) 15W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PXMA-X7
Number of Outputs 2
Approval Agency CB, CE, cULus, cURus
Efficiency 72%
Voltage - Isolation 3kV
Output Voltage 5V
Voltage - Output 1 5V
Input Voltage-Nom 100V
Trim/Adjustable Output NO
Current - Output (Max) 1.5A 625mA
Voltage - Input 85V~264VAC 120V~370VDC
Voltage - Output 2 12V
Total Power Output-Max 7.5W
Minimum Load Required Yes
Compliance
RoHS Status ROHS3 Compliant
